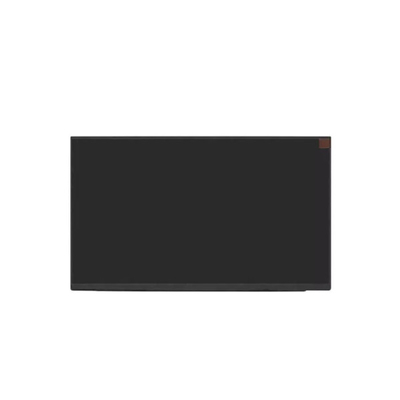

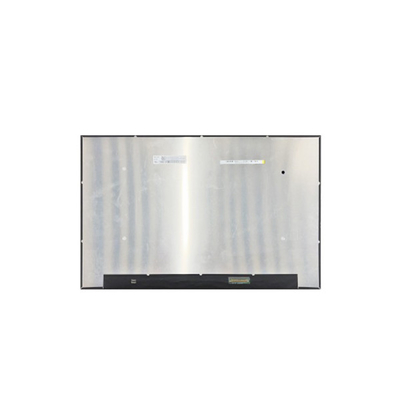

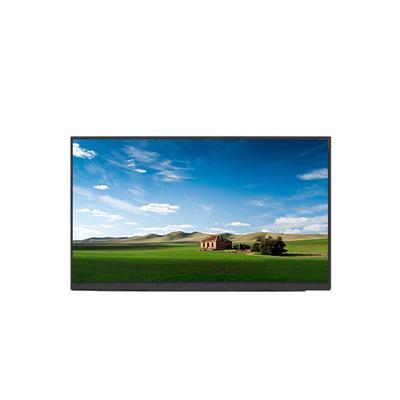

New 16.0 inch LCD panel NE160QDM-NY3 2560*1600 TFT LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE160QDM-NY3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE160QDM-NY3 | Screen Size: | 16.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 188PPI | Active Area: | 344.678(W)×215.424(H) Mm |
| Work Mode: | ADS, Normally Black, Transmissive | Used For: | Laptop、Gaming |
| Outline Shape: | Slim (PCBA Bent, T≤3.0mm) | Refresh Rate: | 165Hz |
| Signal Type: | EDP (4 Lanes), EDP1.4 , HBR3 (8.1G/lane) , 40 PinsConnector | Voltage Supply: | 3.3V (Typ.) |
Product Description
New 16.0 inch LCD panel NE160QDM-NY3 2560*1600 TFT LCD Screen
Product details :
| Brand | BOE |
| Model P/N | NE160QDM-NY3 |
| Diagonal Size | 16.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.678(W)×215.424(H) mm |
| Bezel Opening | - |
| Outline Size | 349.68(W)×224.42(H)×4.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 100%DCI-P3 |
| Backlight | 11S4P×2CNWLED, 15K hours, With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop,Gaming |
| Refresh Rate | 165Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes), eDP1.4 , HBR3 (8.1G/lane) , 40 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of NE160QDM-NY3 ?
A: Of course!sample order is welcome !
Q: How to make payment of NE160QDM-NY3 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of NE160QDM-NY3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
