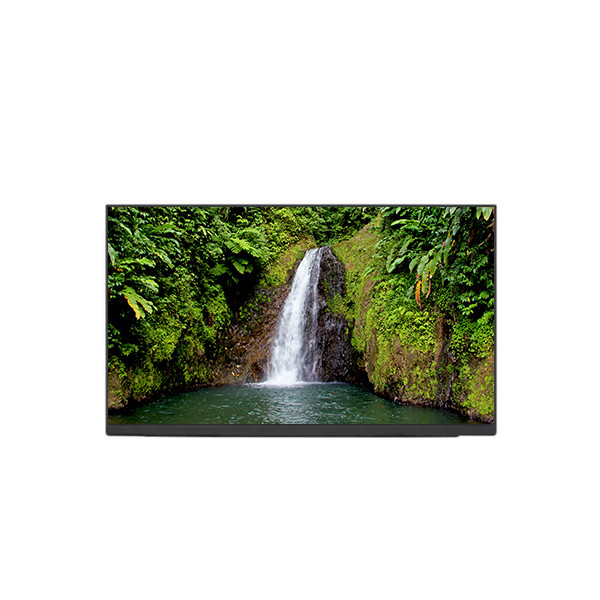

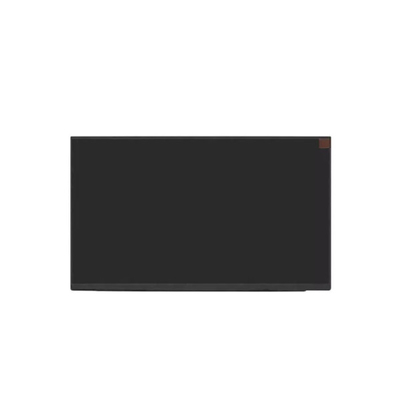

NE160QDM-N64 16.0 inch 2560*1600 TFT LCD Displays
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE160QDM-N64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE160QDM-N64 | Screen Size: | 16.0" |
|---|---|---|---|
| Resolution: | 2560(RGB)×1600, WQXGA 188PPI | Active Area: | 344.678(W)×215.424(H) Mm |
| Outline Dim.: | 349.68(H)×231.42(V)×3(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Luminance: | 350 Cd/m² (Typ.) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Panel Type: | Oxide TFT-LCD, LCM | Designed For: | Laptop |
Product Description
NE160QDM-N64 16.0 inch 2560*1600 TFT LCD Displays
Product details :
| Brand | BOE |
| Model P/N | NE160QDM-N64 |
| Diagonal Size | 16.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.678(W)×215.424(H) mm |
| Bezel Opening | - |
| Outline Dim. | 349.68(H)×231.42(V)×3(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100%sRGB |
| Light Source | WLED [10S6P], 15K hours, With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 90Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes), eDP1.4 , HBR1 (2.7G/lane) , 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of NE160QDM-N64 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of NE160QDM-N64 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of NE160QDM-N64 ?
A: Of course!sample order is welcome !
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
