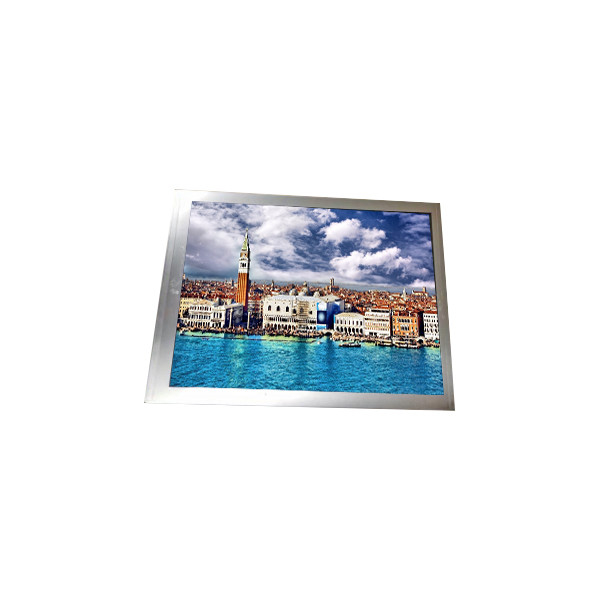

New 16.0 inch 1920*1200 lcd screen B160UAN01.H HW0A LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B160UAN01.H HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B160UAN01.H HW0A | Screen Size: | 16.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 141PPI | Active Area: | 344.68(W)×215.42(H) Mm |
| Outline Dim.: | 350.38(H)×226.17(V) ×2.6(D) Mm | Luminance: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Viewing Angle: | 89/89/89/89 (Max.)(CR≥10) |
| Support Color: | 16.7M 100% SRGB | Light Source: | WLED , 15K Hours , With LED Driver |
Product Description
New 16.0 inch 1920*1200 lcd screen B160UAN01.H HW0A LCD Display Screen
Product details :
| Brand | AUO |
| Model P/N | B160UAN01.H HW0A |
| Diagonal Size | 16.0" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.68(W)×215.42(H) mm |
| Bezel Opening | - |
| Outline Dim. | 350.38(H)×226.17(V) ×2.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Max.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.4 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to order lcd panel B160UAN01.H HW0A ?
A: We accept T/T , Paypal , western union .
Q: Can you tested the B160UAN01.H HW0A before shipping ?
A: Of course , 16.0 inch lcd screen B160UAN01.H HW0A was Strictly tested before shipping.
Q: What happen if the B160UAN01.H HW0A received can't work ?
A: B160UAN01.H HW0A lcd panel was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: How long the warranty of the B160UAN01.H HW0A ?
A: 90 days .
