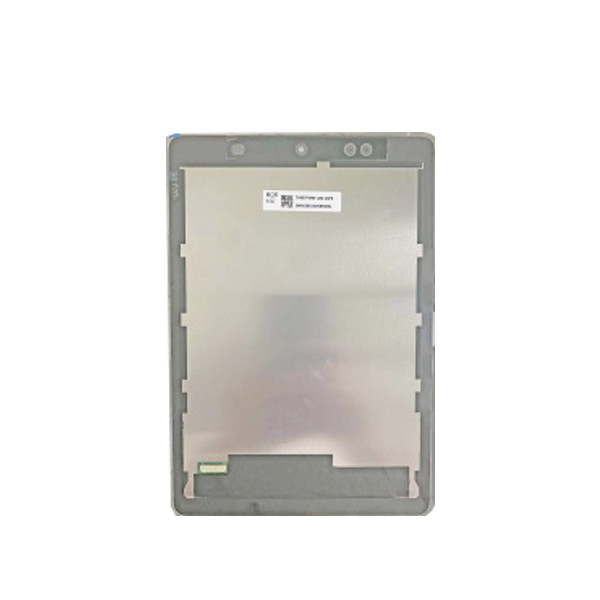

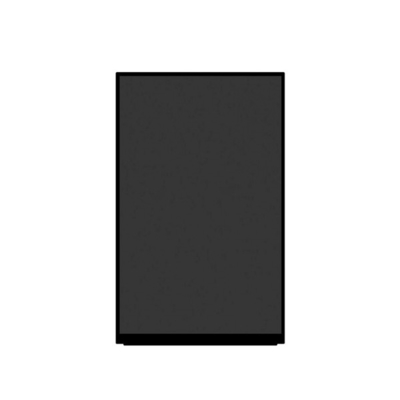

BOE 9.7 inch lcd display TV097FMM-LB0 1280*1752 LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV097FMM-LB0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TV097FMM-LB0 | Screen Size: | 9.7" |
|---|---|---|---|
| View Direction: | Symmetry | Active Area: | 145.344(W)×198.94(H) Mm |
| Outline Dim.: | 150.344(W)×208.29(H) Mm | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| Luminance: | 320 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Touch Screen: | In-Cell Touch, I²C | Application: | Pad & Tablet |
Product Description
BOE 9.7 inch lcd display TV097FMM-LB0 1280*1752 LCD screen
Product details :
| Brand | BOE |
| Model P/N | TV097FMM-LB0 |
| Diagonal Size | 9.7" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1280(RGB)×1752 223PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 145.344(W)×198.94(H) mm |
| Bezel Opening | - |
| Outline Size | 150.344(W)×208.29(H) mm |
| Surface | Clear, Hard coating |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | 35 (Max.)(G to G) |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | 9S4PWLED, 15K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch, I²C |
| Panel Weight | 115g (Max.) |
| Application | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes), 45 pinsConnector |
| Input Voltage | 1.8/5.7/-5.7V (Typ.)(VDD/AVDD/AVEE) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of TV097FMM-LB0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of TV097FMM-LB0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order TV097FMM-LB0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for TV097FMM-LB0 ?
A: Of course!sample order is welcome !
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
