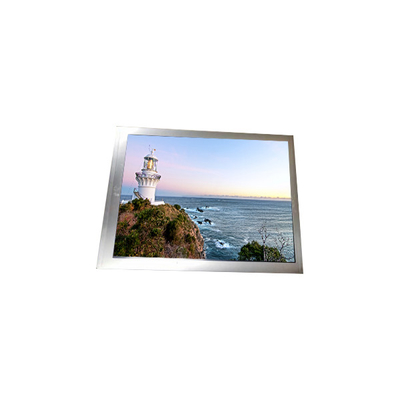

New 11.9 inch lcd screen display TV119FHB-NW0 TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TV119FHB-NW0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TV119FHB-NW0 | Screen Size: | 11.9" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 185PPI | Active Area: | 263.232(W)×148.068(H) Mm |
| Outline Dim.: | 267.832(W)×155.768(H) Mm | Treatment: | Glare (Haze 0%) |
| Luminance: | 0 Cd/m² | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Designed For: | Pad & Tablet |
Product Description
New 11.9 inch lcd screen display TV119FHB-NW0 TFT LCD Module
Product details :
| Brand | BOE |
| Model P/N | TV119FHB-NW0 |
| Diagonal Size | 11.9" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 185PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 263.232(W)×148.068(H) mm |
| Bezel Opening | - |
| Outline Dim. | 267.832(W)×155.768(H) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Plate Thickness | 0.40+0.50 mm |
| Transmittance | - |
| Support Color | 16.7M 90% NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 30 pins Connector |
| Power Supply | COG Suggest ILI6147 |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of TV119FHB-NW0 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of TV119FHB-NW0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of TV119FHB-NW0 ?
A: we will give you tracking number then you can trace your order from website.
Q: If I order TV119FHB-NW0 now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
