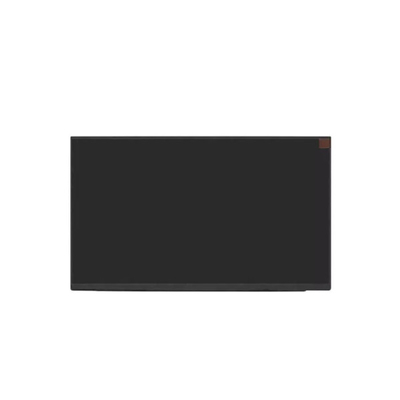

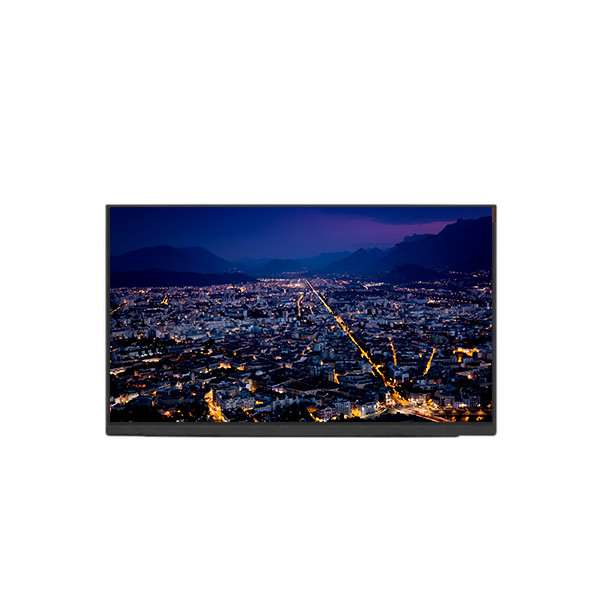

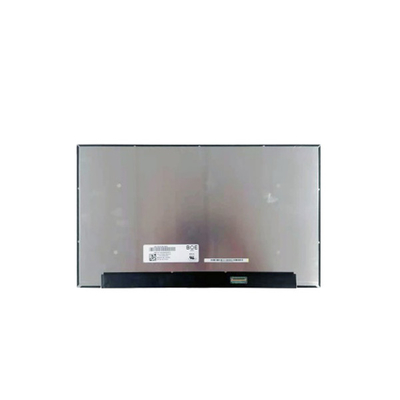

Name: AUO 15.6 inch tft LCD screen NE156QUM-N69 3840*2160 lcd display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NE156QUM-N69
Availability: InStock

Brand Name:	BOE
Model Number:	NE156QUM-N69
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

NE156QUM-N69

Screen Size:

15.6"

Panel Type:

Oxide TFT-LCD, LCM

Resolution:

3840(RGB)×2160, UHD 283PPI

Active Area:

344.218(W)×193.622(H) Mm

Application:

Laptop

Form Style:

Slim (PCBA Bent, T≤3.0mm)

Frame Rate:

60Hz

Interface Type:

EDP (4 Lanes), EDP1.3 , HBR2 (5.4G/lane) , 40 PinsConnector

Power Supply:

3.3V (Typ.)

Supply Ability:

100000 Unit/Units per Month

Product Description

AUO 15.6 inch tft LCD screen NE156QUM-N69 3840*2160 lcd display

Product details :

Brand	BOE
Model P/N	NE156QUM-N69
Diagonal Size	15.6"
Panel Type	Oxide TFT-LCD, LCM
Resolution	3840(RGB)×2160, UHD 283PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.218(W)×193.622(H) mm
Bezel Opening	-S
Outline Dim.	350.72(H)×205.72(V)×5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Min.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M 100%sRGB
Light Source	WLED [10S6P], 15K hours, With LED Driver
Form Style	Slim (PCBA Bent, T≤3.0mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (4 Lanes), eDP1.3 , HBR2 (5.4G/lane) , 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO 15.6 inch tft LCD screen NE156QUM-N69 3840*2160 lcd display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How to make payment of NE156QUM-N69 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of NE156QUM-N69 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of NE156QUM-N69 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of NE156QUM-N69 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
