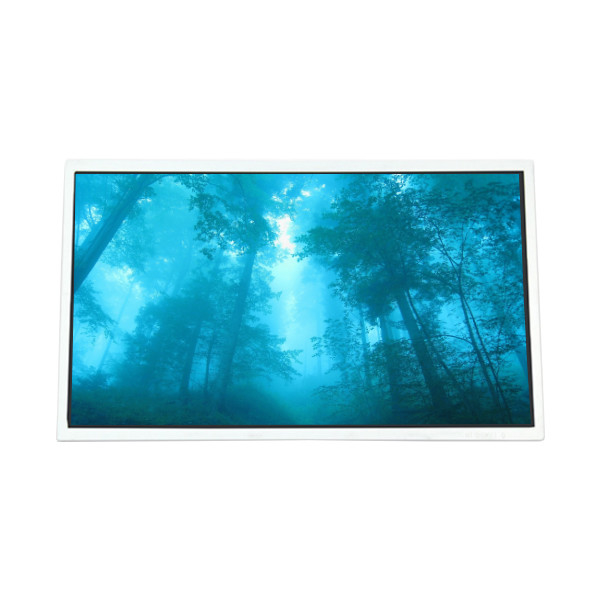

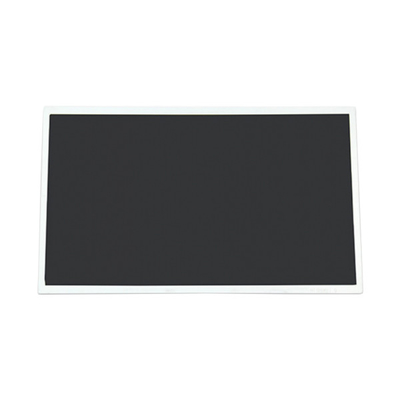

BOE a-Si TFT-LCD panel MV238FHM-NG1 23.8 inch 1920*1080 LCD Displays Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-NG1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-NG1 | Screen Size: | 23.8" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Active Area: | 527.04(W)×296.46(H) Mm |
| Pixel Format: | RGB Vertical Stripe | Resolution: | 1920(RGB)×1080, FHD 92PPI |
| Display Mode: | ADS, Normally Black, Transmissive | Application: | Desktop Monitor、Gaming |
| Refresh Rate: | 144Hz | Signal Type: | LVDS (4 Ch, 8-bit), Connector92 Pins |
Product Description
BOE a-Si TFT-LCD panel MV238FHM-NG1 23.8 inch 1920*1080 LCD Displays Screen
Product details :
| Brand | BOE |
| Model P/N | MV238FHM-NG1 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline (mm) | 535×313×15.35 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 99%sRGB |
| Backlight | WLED, 30K hours, No Driver |
| Mass | 2.23/2.43Kgs (Typ./Max.) |
| Used for | Desktop Monitor,Gaming |
| Refresh Rate | 144Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 8-bit), Connector92 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
