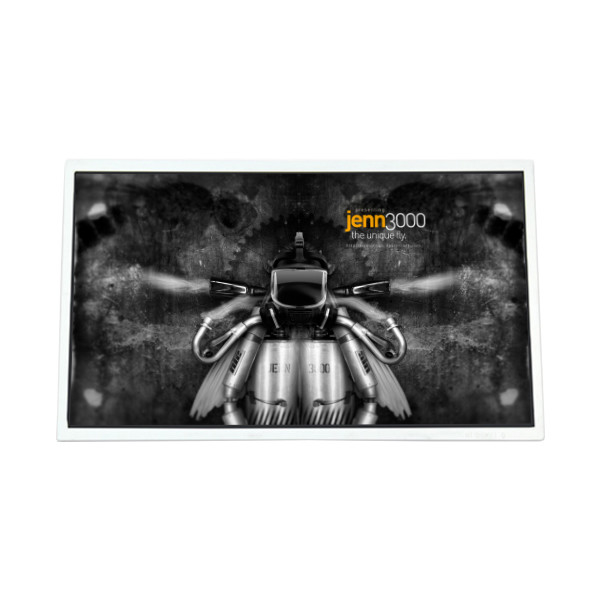

BOE tft lcd panel MV238FHM-N51 23.8 inch 1920*1080 a-Si TFT-LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N51 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | MV238FHM-N51 | Screen Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Pixel Format: | RGB Vertical Stripe | Panel Type: | A-Si TFT-LCD, LCM |
| Display Mode: | ADS, Normally Black, Transmissive | Application: | Desktop Monitor |
| Signal Type: | LVDS (2 Ch, 8-bit), 30 Pins Connector | Voltage Supply: | 5.0V (Typ.) |
Product Description
BOE tft lcd panel MV238FHM-N51 23.8 inch 1920*1080 a-Si TFT-LCD panel
Product details :
| Brand | BOE |
| Model P/N | MV238FHM-N51 |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline(mm) | 534.9(W)×306.95(H)×14(D) |
| Luminance | 250 (Typ.)(cd/m²) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 100% sRGB |
| Mass | 2.20Kgs (Typ.) |
| Refresh Rate | 60Hz |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Work Mode | ADS, Normally Black, Transmissive |
| Response | 14 (Typ.)(G to G) ms |
| Backlight | 4 strings WLED , 30K hours , No Driver |
| Used for | Desktop Monitor |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit), 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of MV238FHM-N51 ?
A: Of course!sample order is welcome !
Q: How to make payment of MV238FHM-N51 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of MV238FHM-N51 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
