Name: BOE 23.0 inch LCD panel UF233VUB-F1C LCD Screen Display Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: UF233VUB-F1C
Availability: InStock

Brand Name:	BOE
Model Number:	UF233VUB-F1C
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

UF233VUB-F1C

Screen Size:

23.0"

Resolution:

2560(RGB)×1080 119PPI

Active Area:

545.28(W)×230.04(H) Mm

Outline Size:

556.28(W)×243.54(H)×1.31(D) Mm

Viewing Angle:

89/89/89/89 (Typ.)(CR≥10)

Brightness:

0 Cd/m²

Response Time:

8 (Typ.)(G To G)

Transmissivity:

4.0% (Typ.)(with Polarizer)

Application:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

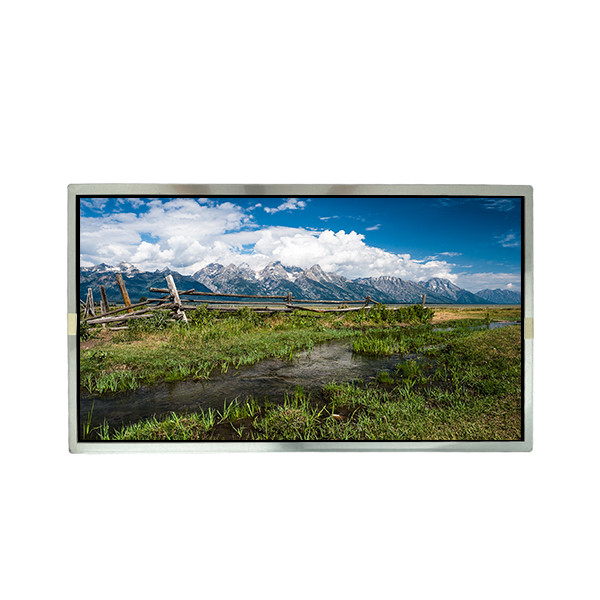

BOE 23.0 inch LCD panel UF233VUB-F1C LCD Screen Display Panel

Product details :

Brand	BOE
Model P/N	UF233VUB-F1C
Diagonal Size	23.0"
Panel Type	Oxide TFT-LCD, CELL, FOB
Resolution	2560(RGB)×1080 119PPI
Pixel Format	RGB Vertical Stripe
Active Area	545.28(W)×230.04(H) mm
Bezel Opening	-
Outline Size	556.28(W)×243.54(H)×1.31(D) mm
Brightness	0 cd/m²
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Glass Depth	0.50+0.50 mm
Display Colors	16.7M 73%NTSC
Frequency	60Hz
Weight	420g (Typ.)
Surface	Antiglare (Haze 25%), Hard coating (2H)
Contrast Ratio	4000:1 (Typ.) (TM)
Display Mode	UV2A, Normally Black, Transmissive
Response Time	8 (Typ.)(G to G)
Transmissivity	4.0% (Typ.)(with Polarizer)
Lamp Type	No B/L
Touch Screen	Without
Application	Desktop Monitor
Driver IC	COFBuilt-in 8 source chips
Signal Interface	eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pinsConnector
Input Voltage	12V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

BOE 23.0 inch LCD panel UF233VUB-F1C LCD Screen Display Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of UF233VUB-F1C ?

A: Of course!If you make a large order, we will give you a discount.

Q: If I place order now,when will you ship the goods of UF233VUB-F1C ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of UF233VUB-F1C ?

A: Of course!sample order is welcome !
