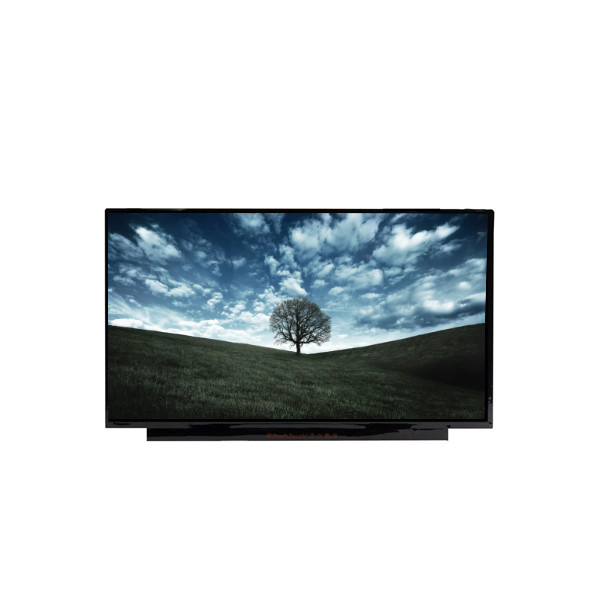

New 14.0 inch LCD panel NE140WUG-N62 lcd Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NE140WUG-N62 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NE140WUG-N62 | Screen Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 161PPI | Active Area: | 301.594(W)×188.496(H) Mm |
| Outline Size: | 305.394(W)×195.896(H)×0.64(D) Mm | Surface: | Antiglare, Hard Coating (3H) |
| Brightness: | 0 Cd/m² | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| Glass Depth: | 0.20+0.20 Mm | Application: | Laptop |
Product Description
New 14.0 inch LCD panel NE140WUG-N62 lcd Screen display
Product details :
| Brand | BOE |
| Model P/N | NE140WUG-N62 |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1200, WUXGA 161PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 301.594(W)×188.496(H) mm |
| Bezel Opening | - |
| Outline Size | 305.394(W)×195.896(H)×0.64(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | ADS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.20+0.20 mm |
| Transmissivity | - |
| Display Colors | 16.7M 100%sRGB |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Built-in 4 source chips |
| Shape Style | - |
| Application | Laptop |
| Signal Interface | eDP (4 Lanes), eDP1.4 , HBR1 (2.7G/lane) , 30 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of NE140WUG-N62 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of NE140WUG-N62 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NE140WUG-N62 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods NE140WUG-N62 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
