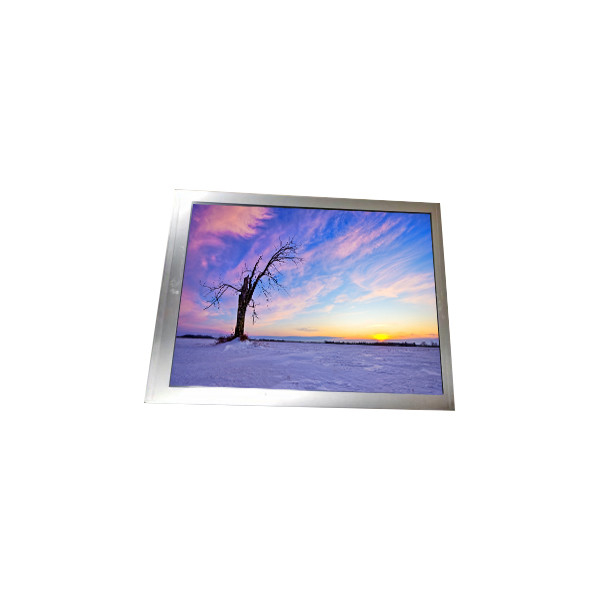

23.8 inch 1920*1080 TFT-lcd Display P238HVN01.0 CELL LCD Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P238HVN01.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P238HVN01.0 CELL | Screen Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Outline Dim.: | 534.04(W)×308.16(H)×1.31(D) | Treatment: | Antiglare, Hard Coating (3H) |
| Brightness: | 0 (cd/m²) | Contrast Ratio: | 3000 : 1 (Typ.) (TM) |
| Response Time: | 10/6 (Typ.)(Tr/Td) Ms | Designed For: | Digital Signage |
Product Description
23.8 inch 1920*1080 TFT-lcd Display P238HVN01.0 CELL LCD Display Panel
Product details :
| Brand | AUO |
| Model P/N | P238HVN01.0 CELL |
| Diagonal Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1920(RGB)×1080, FHD 92PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Dim. | 534.04(W)×308.16(H)×1.31(D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 (cd/m²) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10/6 (Typ.)(Tr/Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 4.3% (Typ.)(with Polarizer) |
| Support Color | 16.7M |
| Light Source | No B/L |
| Weight | 496g (Typ.) |
| Designed For | Digital Signage |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Driver IC list | Built-in COF 6 source chips |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of P238HVN01.0 CELL ?
A: Of course!sample order is welcome !
Q: How to make payment of P238HVN01.0 CELL ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of P238HVN01.0 CELL via credit card ?
A: Yes!you can use your credit card through your Paypal account.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
