21.5 inch 1920*1080 lcd screen P215HVN01.2 CELL a-si TFT LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | P215HVN01.2 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P215HVN01.2 CELL | Screen Size: | 21.5" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 102PPI | Active Area: | 476.64(W)×268.11(H) Mm |
| Outline Dim.: | 487.6(H)×279.41(V)×1.38(D) Mm | Contrast Ratio: | 3000:1 (Typ.) (TM) |
| Brightness: | 0 Cd/m² | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode: | VA, Normally Black, Transmissive | Designed For: | Digital Signage |
Product Description

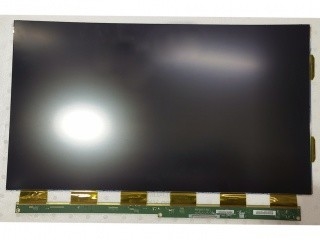

21.5 inch 1920*1080 lcd screen P215HVN01.2 CELL a-si TFT LCD panel
Product details :
| Brand | AUO |
| Model P/N | P215HVN01.2 CELL |
| Diagonal Size | 21.5" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1920(RGB)×1080, FHD 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | - |
| Outline Dim. | 487.6(H)×279.41(V)×1.38(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 13/5 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 3.04% (Typ.)(with Polarizer) |
| Support Color | 16.7M 72%NTSC |
| Light Source | No B/L |
| Weight | 420g (Typ.) |
| Designed For | Digital Signage |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 6 source + 2 gate chips |
| Interface Type | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of P215HVN01.2 CELL ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of P215HVN01.2 CELL ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of P215HVN01.2 CELL to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
