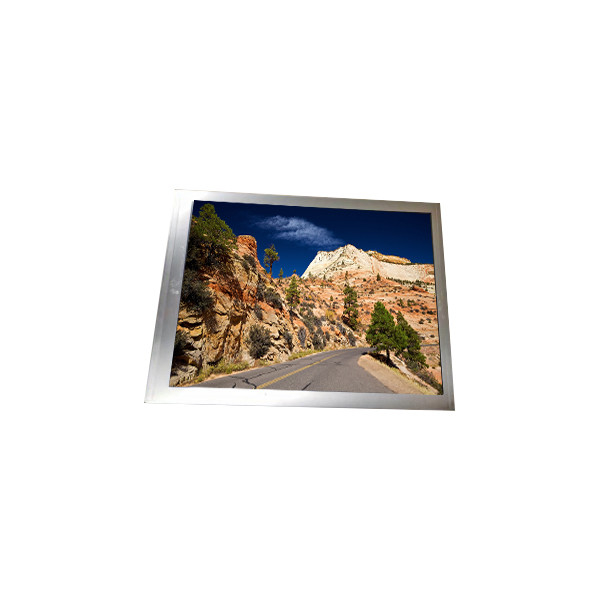

27.0 inch 4K a-Si TFT-LCD M270QAN06.0 CELL LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | M270QAN06.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M270QAN06.0 CELL | Screen Size: | 27.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 163PPI | Active Area: | 596.736(W)×335.664(H) Mm |
| Brightness: | 0 Cd/m² | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Lamp Type: | No B/L, W/O Driver |
| Designed For: | Desktop Monitor | Frame Rate: | 60Hz |
Product Description
27.0 inch 4K a-Si TFT-LCD M270QAN06.0 CELL LCD Display
Product details :
| Brand | AUO |
| Model P/N | M270QAN06.0 CELL |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline Dim. | 608.336(H)×348.414(V)×1.34(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Plate Thickness | 0.50+0.50 mm |
| Transmittance | 3.3% (Typ.)(with Polarizer) |
| Support Color | 1.07B 76%NTSC |
| Light Source | No B/L, W/O Driver |
| Weight | 650g (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| D-IC Detail | COF Built-in 8 source chips |
| Interface Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pinsConnector |
| Power Supply | 10V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How can I trace my order of M270QAN06.0 CELL ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of M270QAN06.0 CELL ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of M270QAN06.0 CELL via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods M270QAN06.0 CELL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
