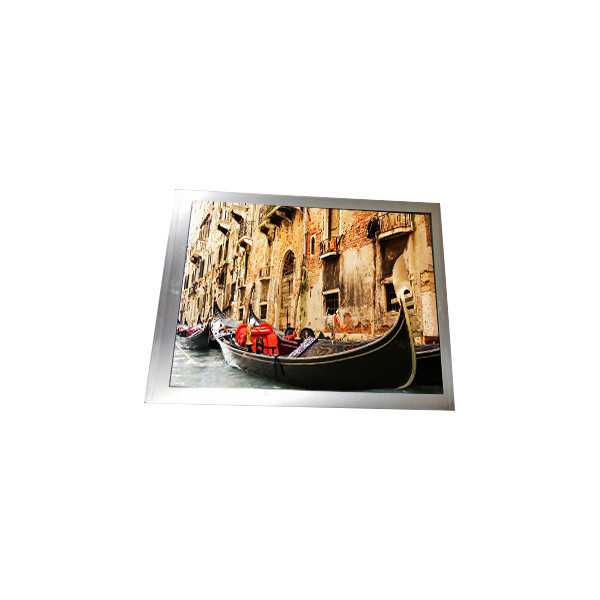

Name: New 15.6 inch lcd screen B156HAN02.5 HW9A TFT LCD Panel Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: B156HAN02.5 HW9A
Availability: InStock

Brand Name:	AUO
Model Number:	B156HAN02.5 HW9A
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

B156HAN02.5 HW9A

Screen Size:

15.6"

Resolution:

1920(RGB)×1080, FHD 141PPI

Active Area:

344.16(W)×193.59(H) Mm

Outline Dim.:

350.66(W)×205.24(H) ×5(D) Mm

Treatment:

Antiglare

Response Time:

25 (Typ.)(Tr+Td)

Contrast:

600:1 (Typ.) (TM)

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

New 15.6 inch lcd screen B156HAN02.5 HW9A TFT LCD Panel Display

Product details :

Brand	AUO
Model P/N	B156HAN02.5 HW9A
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Dim.	350.66(W)×205.24(H) ×5(D) mm
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Support Color	16.2M 45% NTSC
Light Source	WLED , 15K hours , With LED Driver
Shape Style	Slim (PCBA Bent, T≤3.0mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (2 Lanes) , eDP1.2 , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

New 15.6 inch lcd screen B156HAN02.5 HW9A TFT LCD Panel Display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty of B156HAN02.5 HW9A ?

A: 90days warranty .

Q: How can I trace my order of B156HAN02.5 HW9A ?

A: we will give you tracking number then you can trace your order from website.

Q: Can I pay my goods B156HAN02.5 HW9A by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Do you accept sample orders for B156HAN02.5 HW9A ?

A: Of course!sample order is welcome !

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
