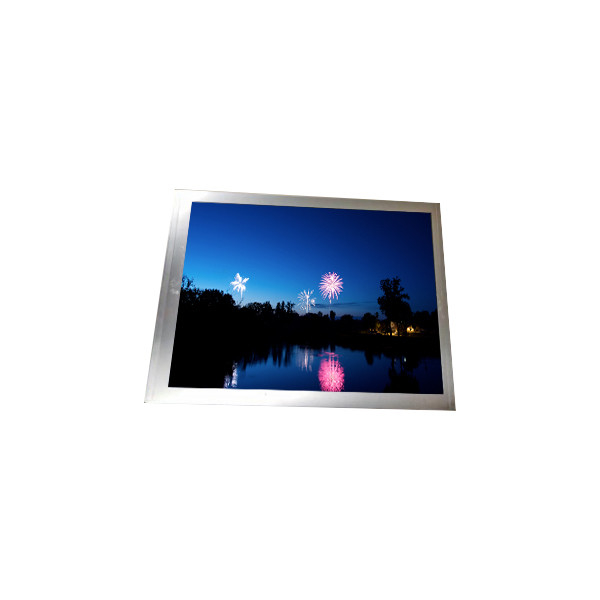

14.0 inch 1920*1080 B140HAK03.2 HW1A LCD Screen TFT LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B140HAK03.2 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B140HAK03.2 HW1A | Screen Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.37(W)×174.02(H) Mm |
| Panel Type: | A-Si TFT-LCD, LCM | Pixel Format: | RGB Vertical Stripe |
| Operating Mode: | AHVA, Normally Black, Transmissive | Apply To: | Laptop |
| Light Source: | WLED , 15K Hours , With LED Driver | Outline Shape: | Slim (PCBA Flat, T≤3.2mm) |
Product Description
14.0 inch 1920*1080 B140HAK03.2 HW1A LCD Screen TFT LCD Panel
Product details :
| Brand | AUO |
| Model P/N | B140HAK03.2 HW1A |
| Diagonal Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 157PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 309.37(W)×174.02(H) mm |
| Bezel Opening | - |
| Outline Dim. | 315.87×197.48×3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.2M 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , Connector 40 pins |
| Power Supply | 3.3V (Typ.) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of B140HAK03.2 HW1A ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of B140HAK03.2 HW1A ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of B140HAK03.2 HW1A ?
A: Of course!sample order is welcome !
