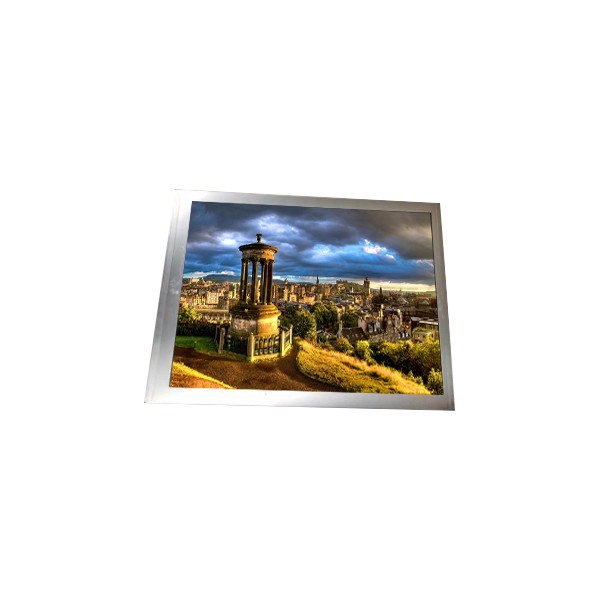

AUO lcd screen display B116XAB01.2 HW4A 11.6 inch new LCD panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B116XAB01.2 HW4A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | B116XAB01.2 HW4A | Screen Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 135PPI | Display Area: | 256.125(W)×144(H) Mm |
| Outline Dim.: | 287.7(W)×185.6(H) ×4.2(D) Mm | Pixel: | RGB Vertical Stripe |
| Support Color: | 262K 50% NTSC | Light Source: | WLED , 15K Hours , With LED Driver |
| Designed For: | Laptop | Frame Rate: | 60Hz |
Product Description
AUO lcd screen display B116XAB01.2 HW4A 11.6 inch new LCD panel
Product details :
| Brand | AUO |
| Model P/N | B116XAB01.2 HW4A |
| Diagonal Size | 11.6" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1366(RGB)×768, WXGA 135PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 256.125(W)×144(H) mm |
| Bezel Opening | - |
| Outline Dim. | 287.7(W)×185.6(H) ×4.2(D) mm |
| Treatment | Anti-Scatter, Hard coating (7H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 27 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | - |
| Support Color | 262K 50% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Shape Style | - |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, I²C |
| Interface Type | eDP (1 Lane) , eDP1.2 , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of B116XAB01.2 HW4A ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of B116XAB01.2 HW4A ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order B116XAB01.2 HW4A now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for B116XAB01.2 HW4A ?
A: Of course!sample order is welcome !
