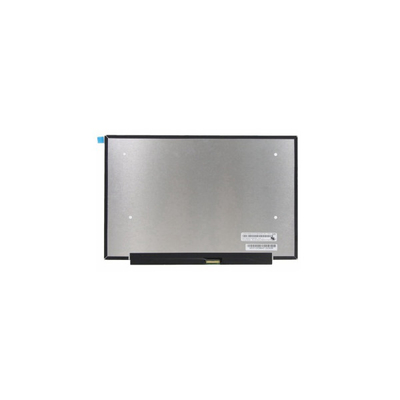

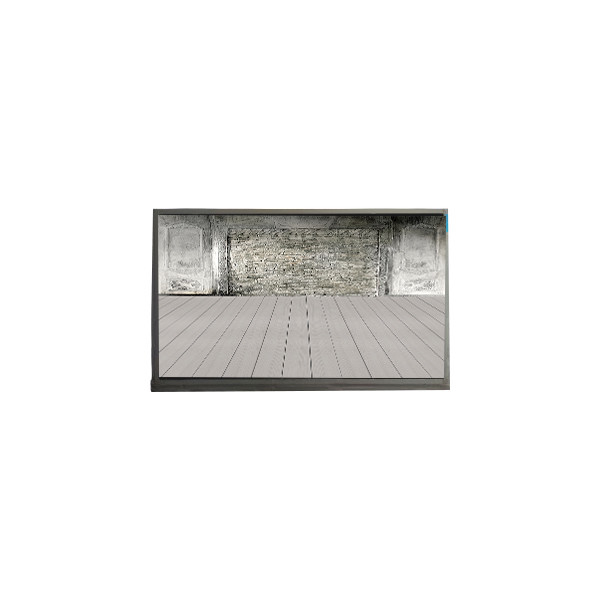

Name: 14.0 inch tft lcd panel 2240*1400 M140NWHE R0 a-Si TFT-LCD panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M140NWHE R0
Availability: InStock

Brand Name:	IVO
Model Number:	M140NWHE R0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M140NWHE R0

Screen Size:

14.0"

Resolution:

2240(RGB)×1400 188PPI

Active Area:

301.55(W)×188.47(H) Mm

Outline Dim.:

306.55(H)×204.47(V)×2.8(D)mm

Treatment:

Antiglare

Response Time:

20 (Typ.)(Tr+Td)

Contrast:

1500:1 (Typ.) (TM)

Form Style:

Slim (PCBA Flat, T≤3.2mm)

Designed For:

Laptop

Supply Ability:

100000 Unit/Units per Month

Product Description

14.0 inch tft lcd panel 2240*1400 M140NWHE R0 a-Si TFT-LCD panel

Product details :

Brand	IVO
Model P/N	M140NWHE R0
Diagonal Size	14.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	2240(RGB)×1400 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	301.55(W)×188.47(H) mm
Bezel Opening	-
Outline Dim.	306.55(H)×204.47(V)×2.8(D)mm
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 100%sRGB
Light Source	WLED, 15K hours, With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (4 Lanes), eDP1.4, 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

14.0 inch tft lcd panel 2240*1400 M140NWHE R0 a-Si TFT-LCD panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can You declare my order of M140NWHE R0 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of M140NWHE R0 ?

A: We accept T/T , Paypal , western union .

Q: Can you give me a discount if I need a large quantity of M140NWHE R0 ?

A: Of course!If you make a large order, we will give you a discount.
