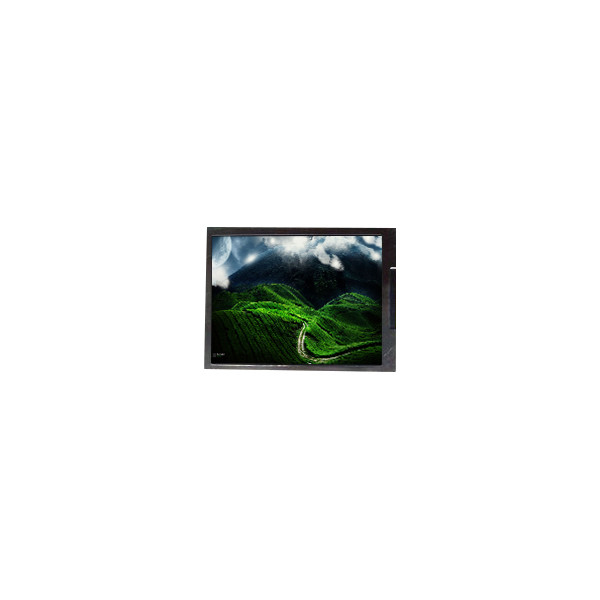

AUO TFT-LCD Module screen DE101IA-07P 10.1 inch lcd panel display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | DE101IA-07P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | DE101IA-07P | Screen Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 145PPI | Display Area: | 223.68(W)×125.82(H) Mm |
| Physical Dimension: | 233.6(W)×138.69(H)×1.43(D) Mm | Recommended: | Symmetry |
| Luminance: | 0 Cd/m² | Contrast: | 1000:1 (Typ.) (TM) |
| Transmissivity: | 4.56% (Typ.)(with Polarizer) | Response Time: | 15/10 (Typ.)(Tr/Td) |
Product Description
AUO TFT-LCD Module screen DE101IA-07P 10.1 inch lcd panel display
Product details :
| Brand | Innolux |
| Model P/N | DE101IA-07P |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, CELL, FOB |
| Resolution | 1280(RGB)×720, WXGA 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.68(W)×125.82(H) mm |
| Bezel Opening | - |
| Outline Size | 233.6(W)×138.69(H)×1.43(D) mm |
| Surface | Antiglare |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Glass Depth | - |
| Transmissivity | 4.56% (Typ.)(with Polarizer) |
| Display Colors | 262K/16.7M NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COG Built-in 2 source + 1 gate chips |
| Panel Weight | 103g (Typ.) |
| Application | Automotive Display |
| Signal Interface | LVDS (1 ch, 6/8-bit) + SPI, 40 pinsConnector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of DE101IA-07P ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of DE101IA-07P ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of DE101IA-07P to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of DE101IA-07P via credit card ?
A: Yes!you can use your credit card through your Paypal account.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
