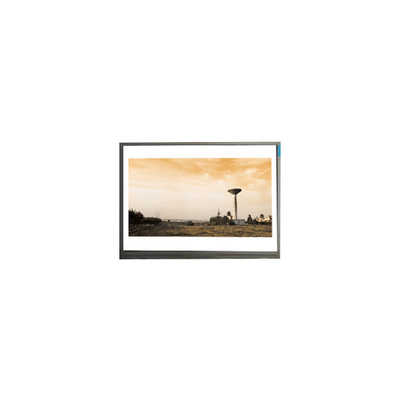

Innolux F062A09-6T3 lcd panel display 6.2 inch 720*1520 lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | F062A09-6T3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F062A09-6T3 | Screen Size: | 6.2" |
|---|---|---|---|
| Resolution: | 720(RGB)×1520 270PPI | Active Area: | 67.608(W)×142.728(H) Mm |
| Outline Size: | 69.608(W)×148.328(H)×1(D) Mm | Surface: | Without Polarizer |
| Luminance: | 0 Cd/m² | Contrast: | 1500:1 (Typ.) (TM) |
| Response Time: | 25 (Typ.)(Tr+Td) | Display Colors: | 16.7M 70%NTSC |
Product Description
Innolux F062A09-6T3 lcd panel display 6.2 inch 720*1520 lcd screen
Product details :
| Brand | Innolux |
| Model P/N | F062A09-6T3 |
| Diagonal Size | 6.2" |
| Panel Type | LTPS TFT-LCD, CELL, Q-CUT (Full Cell) |
| Resolution | 720(RGB)×1520 270PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 67.608(W)×142.728(H) mm |
| Bezel Opening | - |
| Outline Size | 69.608(W)×148.328(H)×1(D) mm |
| Surface | Without Polarizer |
| Brightness | 0 cd/m² |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 3.99% (Typ.) |
| Display Colors | 16.7M 70%NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | In-Cell Touch, I²C |
| Driver IC | COGSuggest FT8006P, NT36525B, HX83102-D, ILI9881H, S6D7AT0 |
| Panel Weight | - |
| Application | Mobile Phone |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
