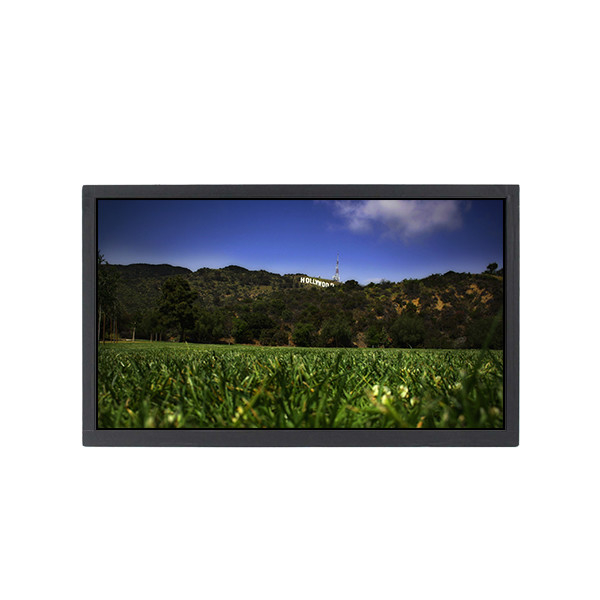

New 10.3 inch LCD panel COG-PVK0052-01 LCD SCREEN DISPLAY PANEL
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | COG-PVK0052-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | COG-PVK0052-01 | Screen Size: | 10.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 200PPI | Active Area: | 243.648(W)×91.368(H) Mm |
| Outline Dim.: | 255.75(W)×106.07(H) ×10.66(D) Mm | Treatment: | Hard Coating |
| Luminance: | 950 Cd/m² (Typ.) | Contrast: | 1100:1 (Typ.) (TM) |
| Response Time: | 30 (Max.)(Tr+Td) | Support Color: | 16.7M 76% NTSC |
Product Description
New 10.3 inch LCD panel COG-PVK0052-01 LCD SCREEN DISPLAY PANEL
Product details :
| Brand | BOE |
| Model P/N | COG-PVK0052-01 |
| Diagonal Size | 10.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×720 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 243.648(W)×91.368(H) mm |
| Bezel Opening | - |
| Outline Dim. | 255.75(W)×106.07(H) ×10.66(D) mm |
| Treatment | Hard coating |
| Luminance | 950 cd/m² (Typ.) |
| Contrast Ratio | 1100:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 76% NTSC |
| Light Source | 7S4P WLED , Without Driver |
| Weight | 280g (Typ.) |
| Designed For | Outdoor High Brightness /Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch, I²C |
| Interface Type | LVDS (2 ch, 8-bit) , 60 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of COG-PVK0052-01 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of COG-PVK0052-01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of COG-PVK0052-01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
