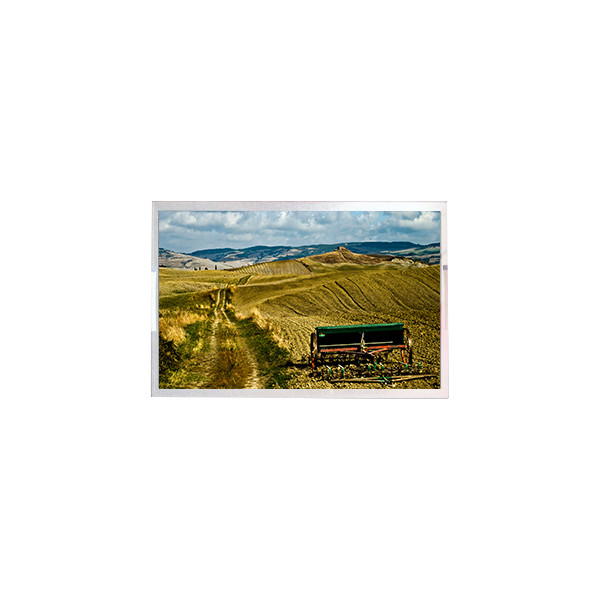

Name: 10.1 inch LCD Panel DISPLAY RV101FBB-N02-V1 new LCD screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: RV101FBB-N02-V1
Availability: InStock

Brand Name:	BOE
Model Number:	RV101FBB-N02-V1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

RV101FBB-N02-V1

Screen Size:

10.1"

Resolution:

4920×2880 564PPI

Active Area:

221.4(W)×129.6(H) Mm

Outline Dim.:

227.4(W)×139.5(H) ×1.07(D) Mm

Treatment:

Antireflection

Luminance:

0 Cd/m²

Contrast:

400:1 (Min.) (TM)

Response Time:

35 (Typ.)(Tr+Td)

Viewing Angle:

80/80/80/80 (Min.)(CR≥10)

Supply Ability:

100000 Unit/Units per Month

Product Description

10.1 inch LCD Panel DISPLAY RV101FBB-N02-V1 new LCD screen

Product details :

Brand	BOE
Model P/N	RV101FBB-N02-V1
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	4920×2880 564PPI
Pixel Format	Rectangle
Active Area	221.4(W)×129.6(H) mm
Bezel Opening	-
Outline Dim.	227.4(W)×139.5(H) ×1.07(D) mm
Treatment	Antireflection
Luminance	0 cd/m²
Contrast Ratio	400:1 (Min.) (TM)
View Direction	Symmetry
Response Time	35 (Typ.)(Tr+Td)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Glass Depth	-
Transmissivity	4.2% (Typ.)
Support Color	Grayscale
Light Source	No B/L
Weight	TBD
Designed For	3D Printer
Frame Rate	75Hz
Touch Panel	Without
Driver IC	COG Built-in 4 source chips
Interface Type	eDP (4 Lanes) , 40 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -10 ~ 80 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

10.1 inch LCD Panel DISPLAY RV101FBB-N02-V1 new LCD screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How can I trace my order of RV101FBB-N02-V1 ?

A: we will give you tracking number then you can trace your order from website.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can you give me a discount if I need a large quantity of RV101FBB-N02-V1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of RV101FBB-N02-V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account
