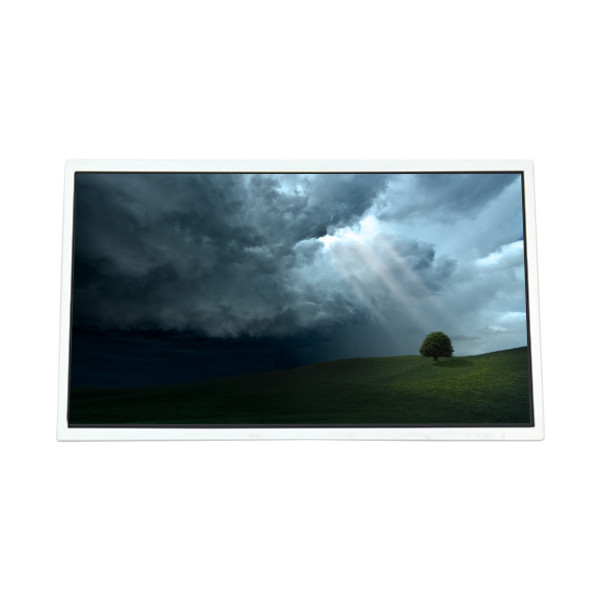

New 11.0 inch LCD screen TS110QDM-LP0 1600*2560 LCD DISPLAY
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | TS110QDM-LP0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TS110QDM-LP0 | Screen Size: | 11.0" |
|---|---|---|---|
| Resolution: | 1600(RGB)×2560, WQXGA 275PPI | Active Area: | 147.408(W)×235.853(H) Mm |
| Outline Dim.: | 161.388 × 249.833 × 4.61 (H×V×D) | Treatment: | Hard Coating (3H) |
| Luminance: | 480 Cd/m² (Typ.) | Contrast: | 1500 : 1 (Typ.) (TM) |
| Support Color: | 16.7M 98% DCI-P3 | Designed For: | Pad & Tablet |
Product Description
New 11.0 inch LCD screen TS110QDM-LP0 1600*2560 LCD DISPLAY
Product details :
| Brand | BOE |
| Model P/N | TS110QDM-LP0 |
| Diagonal Size | 11.0" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 1600(RGB)×2560, WQXGA 275PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 147.408(W)×235.853(H) mm |
| Bezel Opening | - |
| Outline Dim. | 161.388 × 249.833 × 4.61 (H×V×D) |
| Treatment | Hard coating (3H) |
| Luminance | 480 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 16 (Typ.)(Tr+Td), 20 (Typ.)(G to G) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 98% DCI-P3 |
| Light Source | 8S5P WLED , 15K hours , No Driver |
| Weight | 175W (Max.) |
| Designed For | Pad & Tablet |
| Frame Rate | 120Hz |
| Touch Panel | In-Cell Touch, I²C/SPI |
| Interface Type | MIPI C-phy (2 ch, 3 data lanes) , 78 pins Connector |
| Power Supply | 1.8/5.8/-5.8V (Typ.)(IOVCC/VSP/VSN) |
| Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Quality & Warranty:
1) Firstly, we got all lcd(touch screen) and all related testing equipment to test and make sure they are good quality, because we know if you get it bad, that will be our problem.
2) Please inform us WITHIN 3 DAYS after receiving the parcel if you are dissatisfied with products (Real picture and other evidence must be given),then we will offer replacement/refund if the products are not as described.
3) If the item is your prossession more than 7 days ,it is considered used /second –hand ,we will Only offer replacement service after we get your return item
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How do you ship my goods TS110QDM-LP0 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of TS110QDM-LP0 ?
A: 90 days warranty .
Q: How can I trace my order of TS110QDM-LP0 ?
A: we will give you tracking number then you can trace your order form website.
Q: Can you give me a discount if I need a large quantity of TS110QDM-LP0 ?
A: Of course!If you make a large order, we will give you a discount.
