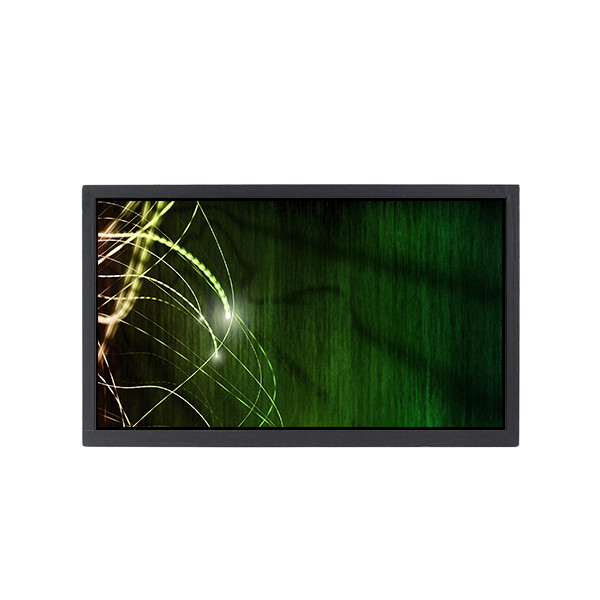

New and original LCD TV070WXM-TV1 7.0 inch LCD screen Display panel
  • name

New and original LCD TV070WXM-TV1 7.0 inch LCD screen Display panel

Brand Name: BOE
Model Number: TV070WXM-TV1
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
TV070WXM-TV1
Screen Size:
7.0"
Resolution:
800(RGB)×1280, WXGA 215PPI
Active Area:
94.2(W)×150.72(H) Mm
Outline Dim.:
106.66 × 173.66 × 5.2 (H×V×D)
Treatment:
Anti Fingerprint
Luminance:
400 Cd/m² (Typ.)
Contrast:
1000 : 1 (Typ.) (TM)
Support Color:
16.7M 50% NTSC
Light Source:
WLED , 30K Hours , No Driver
Supply Ability:
100000 Unit/Units per Month
Product Description

New and original LCD TV070WXM-TV1 7.0 inch LCD screen Display panel





Product details :

Brand BOE
Model P/N TV070WXM-TV1
Diagonal Size 7.0"
Panel Type a-Si TFT-LCD, Assembly
Resolution 800(RGB)×1280, WXGA 215PPI
Pixel Format RGB Vertical Stripe
Active Area 94.2(W)×150.72(H) mm
Bezel Opening -
Outline Dim. 106.66 × 173.66 × 5.2 (H×V×D)
Treatment Anti Fingerprint
Luminance 400 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
View Direction Symmetry
Response Time 30 (Typ.)(Tr+Td) ms
Viewing Angle 80/80/80/80 (Min.)(CR≥10)
Operating Mode -
Support Color 16.7M 50% NTSC
Light Source WLED , 30K hours , No Driver
Weight 130g (Max.)
Designed For Pad & Tablet
Frame Rate 60Hz
Touch Panel On-Cell Touch, I²C
Interface Type MIPI (4 data lanes) , 39 pins Connector
Power Supply 1.8/3.3V (Typ.)(IOVCC/VDD)
Environment Storage Temp.: -40 ~ 70 °C Operating Temp.: -20 ~ 50 °C



Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :



New and original LCD TV070WXM-TV1 7.0 inch LCD screen Display panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ:

Q: How can I trace my order of TV070WXM-TV1 ?

A: we will give you tracking number then you can trace your order from website.



Q: How to make payment of TV070WXM-TV1 ?

A: We accept T/T , Paypal , western union .



Q: Do you accept sample orders of TV070WXM-TV1 ?

A: Of course!sample order is welcome !



Q: Can you give me a discount if I need a large quantity of TV070WXM-TV1 ?

A: Of course!If you make a large order, we will give you a discount.
