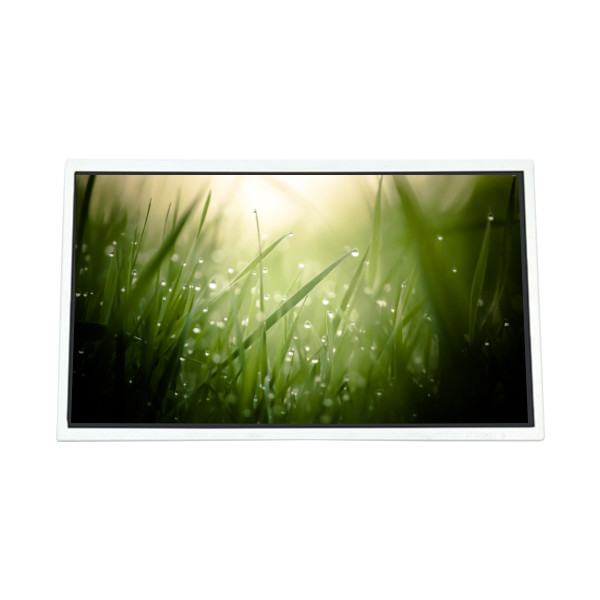

New 10.1 inch 1280*720 tft lcd display COG-VLJP7016-01 LCD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | COG-VLJP7016-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | COG-VLJP7016-01 | Screen Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 145PPI | Active Area: | 223.68(W)×125.82(H) Mm |
| Outline Dim.: | 233.9(W)×141.4(H) ×12(D) Mm | Treatment: | Antiglare |
| Luminance: | 700 Cd/m² (Typ.) | Contrast: | 1000:1 (Typ.) (TM) |
| View Direction: | Symmetry | Response Time: | 30 (Max.)(Tr+Td) |
Product Description
New 10.1 inch 1280*720 tft lcd display COG-VLJP7016-01 LCD Screen
Product details :
| Brand | BOE |
| Model P/N | COG-VLJP7016-01 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 145PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 223.68(W)×125.82(H) mm |
| Bezel Opening | 226.68(W)×128.82(H) mm |
| Outline Dim. | 233.9(W)×141.4(H) ×12(D) mm |
| Treatment | Antiglare |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 75% NTSC |
| Light Source | 8S4P WLED , 30K hours , Without Driver |
| Weight | 347±30g |
| Designed For | Outdoor High Brightness ,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 60 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1) Order will dispatch within 72 working hours once the payment confirmed .we will inform you inmmediately when you purchased the products or colour are not available
2) Comes with pretective plastic film on the screens and safe packing
3) All items can be shipped by DHL ,EMS,China Post Air Mail with trucking No for checking parcel statues online
4) Parcel ship to order payment Destination Adress Only!
5) The extra shipping fees have to be charged if destination address is on the remote Areas’ list,please kindly understand.
6) The order will be declared as low value or Customer requirment to avoid Duty /Tax. Due to International trade policy and slim margins ,please notice our seller are not responsible for any possible duties /local taxes or other customers clearance in time.
7) The parcel will be packed very well before shipping to avoid damage.
FAQ:
Q: How can I trace my order of COG-VLJP7016-01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of COG-VLJP7016-01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of COG-VLJP7016-01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods COG-VLJP7016-01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
