Name: 15 Inch G150XJE-E01 Industrial LCD Panel Display Full View
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: G150XJE-E01
Availability: InStock

Brand Name:	Innolux
Model Number:	G150XJE-E01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

G150XJE-E01

Screen Size:

15.0 Inch

Resolution:

1024(RGB)×768, XGA, 85PPI

Display Area:

304.128(W)×228.096(H) Mm

Physical Dimension:

326.5(W)×253.5(H)×9.6(D) Mm

Visual Size:

307.4(W)×231.3(H) Mm

Display:

400 Cd/m² (Typ.)

Contrast:

2500:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Highlight:

Industrial lcd display panel 15 Inch

full view lcd screen display panel

No touch 60hz lcd screen panel

Product Description

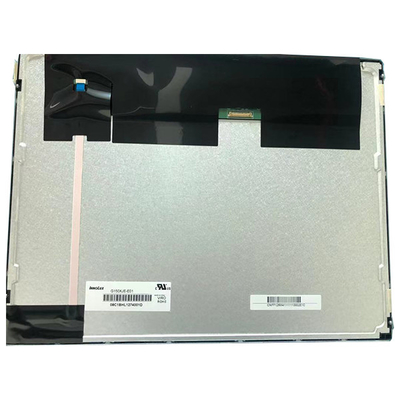

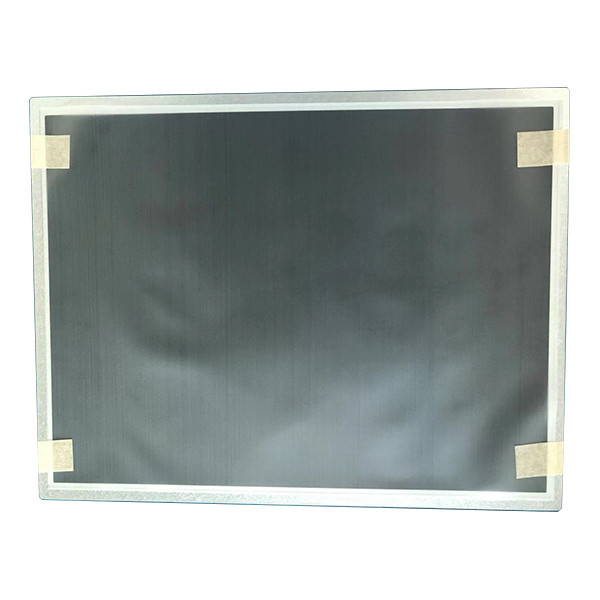

15 inch G150XJE-E01 Industrial LCD Panel Display

Product details :

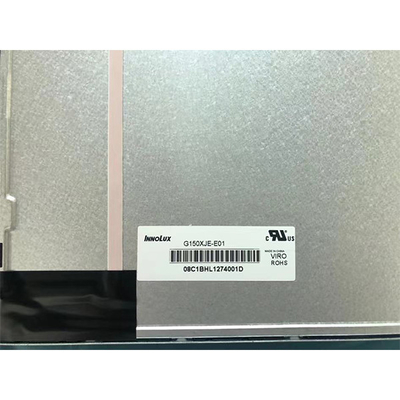

Innolux LCD SCREEN G150XJE-E01
manufacturer	Innolux
Model Name	G150XJE-E01
screen size	15.0 inches
Screen type	a-Si TFT-LCD , LCM
Resolution	1024(RGB)×768, XGA, 85PPI
Pixel configuration	RGB vertical bars
Display size	304.128(W)×228.096(H) mm
physical dimension	326.5(W)×253.5(H)×9.6(D) mm
Visual size	307.4(W)×231.3(H) mm
surface treatment	Matte, Hard coating (3H)
Brightness	400 cd/m² (Typ.)
Contrast	2500:1 (Typ.) (TM)
Best angle	Full view
Optical mode	NPVA, Normally Black, Transmissive
Viewing angle	88/88/88/88 (Typ.) (CR≥10)
Responding time	16/7 (Typ.)(Tr/Td) ms
Number of color	262K/16.7M , 72% NTSC
Backlight type	WLED , 70K hours, with LED driver
Panel weight	942/980g (Typ./Max.)
Apply to	industry / car display / game
Refresh rate	60Hz
Touch function	No touch

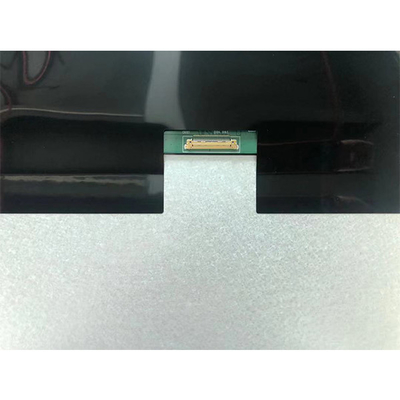

signal system	eDP (1 Lane) , eDP1.2 , 30 pins , terminal
Supply voltage	3.3V (Typ.)
Maximum rating	Working: -20 ~ 70 °C ; Storage: -30 ~ 70 °C
15 inch G150XJE-E01 Industrial LCD Panel Display

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

15 Inch G150XJE-E01 Industrial LCD Panel Display Full View 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long the warranty of G150XJE-E01 ?

A: 90 days .

Q: Can you test the lcd panel G150XJE-E01 before shipping ?

A: Of course , our all the lcd panel was Strictly tested before shipping .

Q: Can you declared low value for my order G150XJE-E01 when shipping?

A: Yes, We can do it for you if you need.

Q: What happen if the lcd panel G150XJE-E01 I received can't work ?

A: lcd display G150XJE-E01 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
