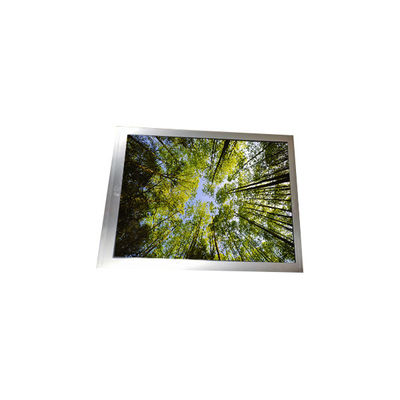

Name: AUO LCD Screen C156HAX01.0 15.6 inch a-Si TFT-LCD LCM
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: C156HAX01.0
Availability: InStock

Brand Name:	AUO
Model Number:	C156HAX01.0
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

C156HAX01.0

Screen Size:

15.6"

Resolution:

1920(RGB)×1080, FHD 141PPI

Active Area:

344.16(W)×193.59(H) Mm

Outline Dim.:

349.16×203.22×0.77 (H×V×D)

Viewing Angle:

80/80/80/80 (Typ.)(CR≥10)

Display:

0 Cd/m²

Contrast:

1200 : 1 (Min.) (TM)

Touch Panel:

In-Cell Touch, I²C

Designed For:

Automotive Display

Supply Ability:

100000 Unit/Units per Month

Product Description

AUO LCD Screen C156HAX01.0 15.6 inch a-Si TFT-LCD LCM

Product details :

Brand	AUO
Model P/N	C156HAX01.0
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Dim.	349.16×203.22×0.77 (H×V×D)
Treatment	Hard coating
Luminance	0 cd/m²
Contrast Ratio	1200 : 1 (Min.) (TM)
View Direction	Symmetry
Response Time	-
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Glass Thickness	0.25+0.25 mm
Transmissivity	4.7% (Typ.)(with Polarizer)
Support Color	16.7M 71% NTSC
Light Source	No B/L
Weight	TBD
Designed For	Automotive Display
Frame Rate	-
Touch Panel	In-Cell Touch, I²C
Driver IC list	Built-in HX83192-C*2
Interface Type	LVDS (2 ch, 8-bit) , FPC 240 pins
Power Supply	3.3/6.6/-6.5/10/-9V (Typ.)(VDDI/VSP/VSN/VGH/VGL)
Environment	Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO LCD Screen C156HAX01.0 15.6 inch a-Si TFT-LCD LCM 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: I do not find the LCD I am looking for in the website, what should I do ?

A: You can give us some pictures,we have a lot of LCD out of shelves.

Q: How long will I receive my goods of C156HAX01.0 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for C156HAX01.0 ?

A: We accept T/T , Paypal , western union .

Q: What happen if the C156HAX01.0 I receive can't work ?

A: C156HAX01.0 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
