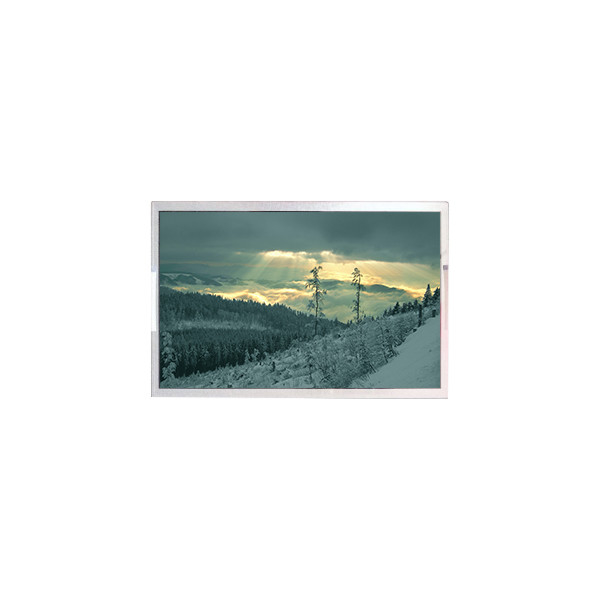

Name: 23.8 inch a-si TFT lcd panel SG2381B02-2 LCD Display Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: SG2381B02-2
Availability: InStock

Brand Name:	CSOT
Model Number:	SG2381B02-2
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

SG2381B02-2

Screen Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Display Area:

527.04(W)×296.46(H) Mm

Outline Dim.:

534.04(H)×307.86(V) ×1.3(D) Mm

Treatment:

Antiglare (Haze 25%), Hard Coating (3H)

Display:

0 Cd/m²

Contrast:

1000:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

23.8 inch a-si TFT lcd panel SG2381B02-2 LCD Display Screen

Product details :

Brand	CSOT
Model P/N	SG2381B02-2
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.04(H)×307.86(V) ×1.3(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	FFS, Normally Black, Transmissive
Plate Thickness	0.50+0.50 mm
Transmittance	4.8% (Typ.)(with Polarizer)
Support Color	16.7M 94% sRGB
Light Source	No B/L
Weight	505g (Typ.)
Designed For	Desktop Monitor
Frame Rate75Hz	75Hz
Touch Panel	Without
D-IC Detail	COF Built-in 4 source chips
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

23.8 inch a-si TFT lcd panel SG2381B02-2 LCD Display Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: When will my order lcd panel SG2381B02-2 ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Can you test lcd panel SG2381B02-2 before shipping?

A: Don't Worry , The SG2381B02-2 was tested ok before shipping.

Q: What happen if SG2381B02-2 I received can't work ?

A: The SG2381B02-2 will be tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
