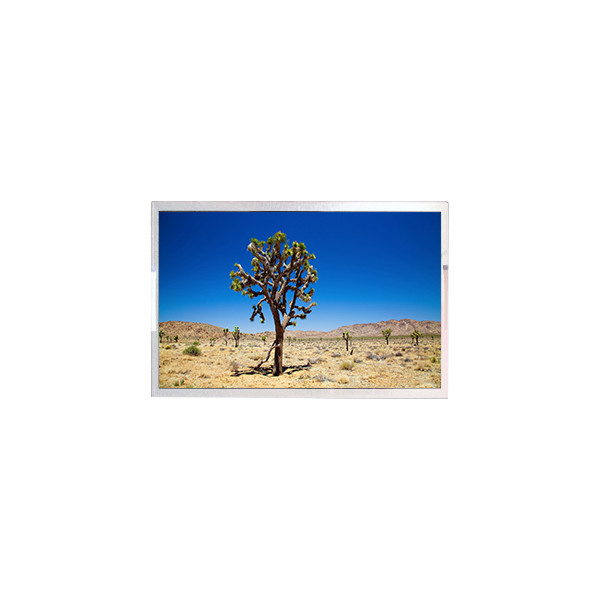

Name: LCD Display M238HAN03.6 CELL 23.8 inch LCD Screen Display Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: M238HAN03.6 CELL
Availability: InStock

Brand Name:	AUO
Model Number:	M238HAN03.6 CELL
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

M238HAN03.6 CELL

Screen Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Outline Dim.:

534.64 × 308.46 × 1.34 (H×V×D)

Treatment:

Antiglare (Haze 25%)

Display:

0 Cd/m²

Contrast:

1300 : 1 (Typ.) (TM)

Glass Thickness:

0.50+0.50 Mm

Transmissivity:

5.5% (Typ.)(with Polarizer)

Supply Ability:

100000 Unit/Units per Month

Product Description

LCD Display M238HAN03.6 CELL 23.8 inch LCD Screen Display Panel

Product details :

Brand	AUO
Model P/N	M238HAN03.6 CELL
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline Dim.	534.64 × 308.46 × 1.34 (H×V×D)
Treatment	Antiglare (Haze 25%)
Luminance	0 cd/m²
Contrast Ratio	1300 : 1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14 (Typ.)(G to G) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AHVA, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.5% (Typ.)(with Polarizer)
Support Color	16.7M 63% NTSC
Light Source	No B/L
Weight	480g (Typ.)
Designed For	Desktop Monitor
Frame Rate	100Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

LCD Display M238HAN03.6 CELL 23.8 inch LCD Screen Display Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: If I place order now,when will you ship the goods of M238HAN03.6 CELL ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of M238HAN03.6 CELL via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of M238HAN03.6 CELL to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long will I receive my goods M238HAN03.6 CELL ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
