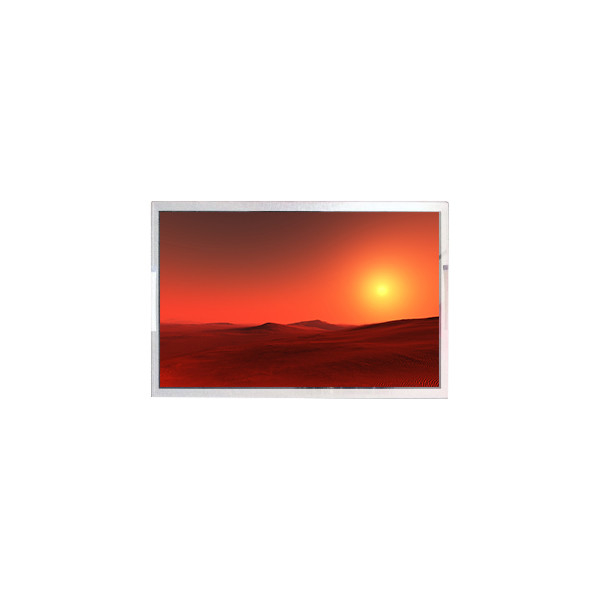

10.9 inch 1920*720 LCD Screen Display Panel C109HAX01.0
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | C109HAX01.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | C109HAX01.0 | Screen Size: | 10.9" |
|---|---|---|---|
| Resolution: | 1920(RGB)×720 188PPI | Active Area: | 259.2(W)×97.2(H) Mm |
| Outline Dim.: | 263.8(W)×107.1(H)×0.75(D) Mm | Treatment: | Hard Coating |
| Display: | 0 Cd/m² | Contrast: | 3000:1 (Typ.) (TM) |
| Light Source: | No B/L | Designed For: | Automotive Display |
Product Description
10.9 inch 1920*720 LCD Screen Display Panel C109HAX01.0
Product details :
| Brand | AUO |
| Model P/N | C109HAX01.0 |
| Diagonal Size | 10.9" |
| Panel Type | LTPS TFT-LCD, CELL , FOG |
| Resolution | 1920(RGB)×720 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 259.2(W)×97.2(H) mm |
| Bezel Opening | - |
| Outline Dim. | 263.8(W)×107.1(H)×0.75(D) mm |
| Treatment | Hard coating |
| Luminance | 0 cd/m² |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 22 (Max.)(Tr+Td) |
| Viewing Angle | - |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Plate Thickness | - |
| Transmittance | 4.2% (Typ.)(with Polarizer) |
| Support Color | 16.7M 87% NTSC |
| Light Source | No B/L |
| Weight | 51.0±0.5g |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch, I²C |
| D-IC Detail | COG Built-in TD7800C1 |
| Interface Type | LVDS (2 ch, 8-bit) 60 pins FPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -40 ~ 105 °C ; Storage Temperature: -55 ~ 125 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can I pay my order of C109HAX01.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of C109HAX01.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of C109HAX01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
