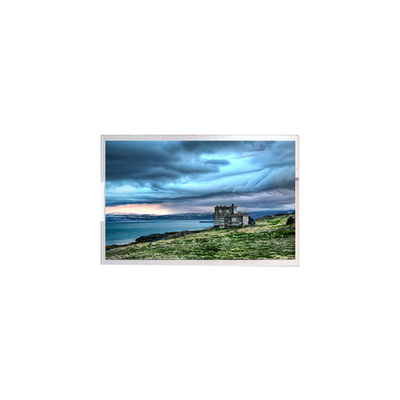

15.0 inch LCD Screen P150GWX3 R1 TFT LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | IVO |
| Model Number: | P150GWX3 R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | P150GWX3 R1 | Screen Size: | 15.0" |
|---|---|---|---|
| Resolution: | 176(RGB)×220, QCIF+, 159PPI | Active Area: | 304.13(W)×228.1(H) Mm |
| Outline Size: | 311.2×326.53×1.44 (H×V×D) | Color Depth: | 16.7M 70% NTSC |
| Transmissivity: | 2.9% (Typ.)(with Polarizer) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
Product Description

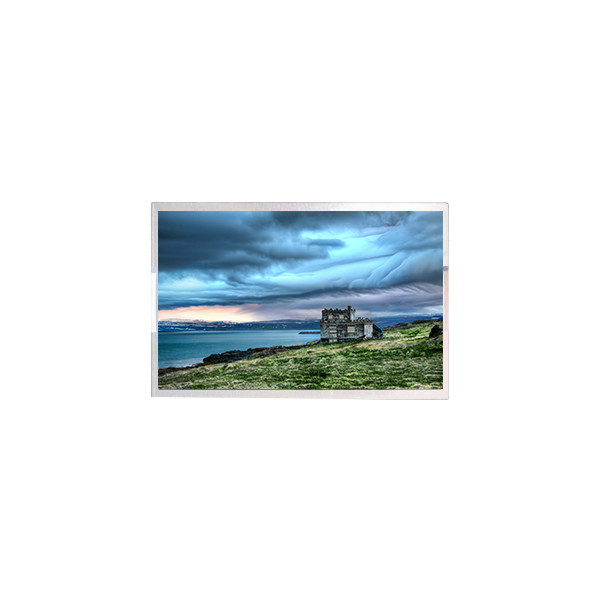

15.0 inch LCD Screen P150GWX3 R1 TFT LCD Panel Display
Product details :
| Brand | IVO |
| Model P/N | P150GWX3 R1 |
| Diagonal Size | 15.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 1024(RGB)×768, XGA 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 304.13(W)×228.1(H) mm |
| Bezel Opening | - |
| Outline(mm) | 311.2×326.53×1.44 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 2.9% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 70% NTSC |
| Backlight | No B/L , With LED Driver |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Driver IC list | Built-in COF 2 source chips |
| Signal Type | LVDS (1 ch, 8-bit) , Connector 20 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can I pay my order of P150GWX3 R1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of P150GWX3 R1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of P150GWX3 R1 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
