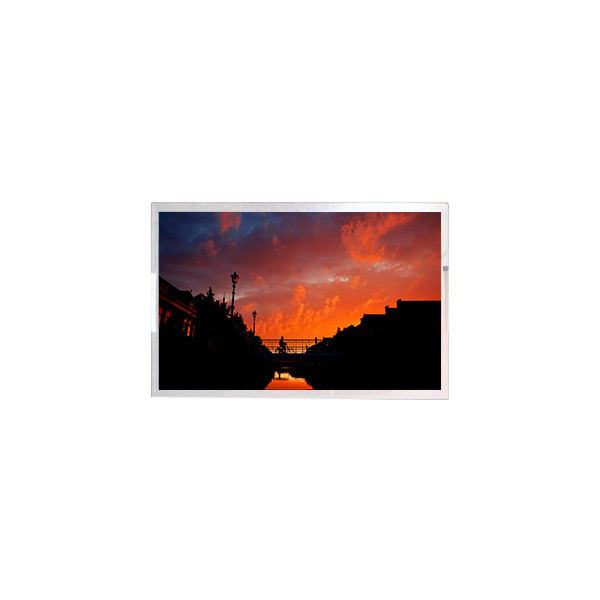

New a-Si TFT lcd Module TL110VVMS05-00C 11.0 inch lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TL110VVMS05-00C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TL110VVMS05-00C | Screen Size: | 11.0" |
|---|---|---|---|
| Resolution: | 1200(RGB)×1920, WUXGA 206PPI | Active Area: | 147.42(W)×235.872(H) Mm |
| Outline Size: | 163.62(H)×252.072(V)×2.87(D) Mm | Work Mode: | SFT, Normally Black, Transmissive |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 150:1 (Typ.) (TM)1500:1 (Typ.) (TM) |
| Used For: | Pad & Tablet | Refresh Rate: | 90Hz |
| Highlight: | Full Hd Lcd Display 280×220,A018AN03 V3 TFT lcd Module |
||
Product Description
New a-Si TFT lcd Module TL110VVMS05-00C 11.0 inch lcd display
Product details :
| Brand | TIANMA |
| Model P/N | TL110VVMS05-00C |
| Diagonal Size | 11.0" |
| Panel Type | LTPS TFT-LCD, Assembly |
| Resolution | 1200(RGB)×1920, WUXGA 206PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 147.42(W)×235.872(H) mm |
| Bezel Opening | - |
| Outline(mm) | 163.62(H)×252.072(V)×2.87(D) mm |
| Treatment | - |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 22 (Typ.)(Tr+Td) |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 16.7M 94% sRGB |
| Backlight | WLED [8S5P] , W/O Driver |
| Mass | 189g (Typ.) |
| Used for | Pad & Tablet |
| Refresh Rate | 90Hz |
| Touchscreen | PCAP, SPI |
| Driver IC list | Built-in COG 4 source + 1 gate chips |
| Signal Type | MIPI (4 data lanes) , 50 pins Connector |
| Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| Max. Ratings | Operating Temperature: -30 ~ 75 °C ; Storage Temperature: -40 ~ 85 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I place order now,when will you ship the goods of TL110VVMS05-00C ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of TL110VVMS05-00C ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods TL110VVMS05-00C ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of TL110VVMS05-00C ?
A: We accept T/T , Paypal , western union .
