Name: 23.8 Inch LCD DISPLAY PANEL MF238FHB-N50 tft LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: MF238FHB-N50
Availability: InStock

Brand Name:	BOE
Model Number:	MF238FHB-N50
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

MF238FHB-N50

Screen Size:

23.8"

Resolution:

1920(RGB)×1080, FHD 92PPI

Active Area:

527.04(W)×296.46(H) Mm

Outline Size:

Active Area

Good View At:

Symmetry

Used For:

Desktop Monitor /Gaming

Contrast Ratio:

4000:1 (Typ.) (TM)

Color Depth:

16.7M 73% NTSC

Work Mode:

UV2A, Normally Black, Transmissive

Supply Ability:

100000 Unit/Units per Month

Highlight:

280×220 LCD DISPLAY PANEL

A018AN03 V1 Camera LCD Screen

Product Description

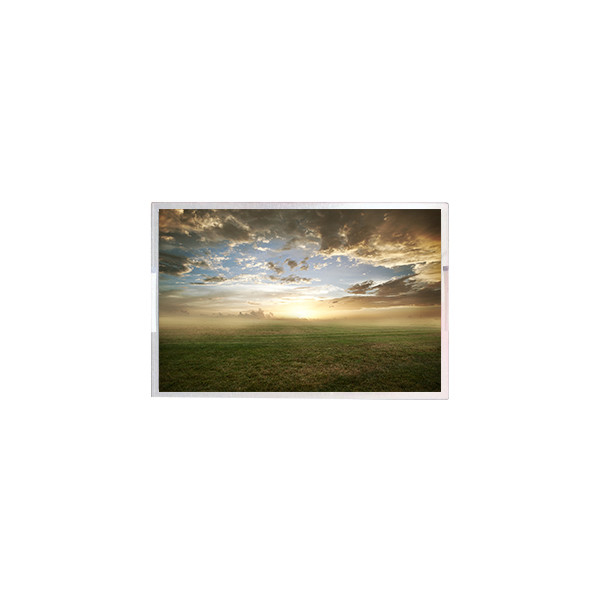

23.8 Inch LCD DISPLAY PANEL MF238FHB-N50 tft LCD Screen

Product details :

Brand	BOE
Model P/N	MF238FHB-N50
Diagonal Size	23.8"
Panel Type	a-Si TFT-LCD, CELL , FOB
Resolution	1920(RGB)×1080, FHD 92PPI
Pixel Format	RGB Vertical Stripe
Active Area	527.04(W)×296.46(H) mm
Bezel Opening	-
Outline(mm)	534.04(W)×307.67(H) ×1.37(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	0 cd/m²
Contrast Ratio	4000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G)
Good View at	Symmetry
Work Mode	UV2A, Normally Black, Transmissive
Glass Thickness	0.50+0.50 mm
Transmissivity	5.0% (Typ.)(with Polarizer)
Color Depth	16.7M 73% NTSC
Backlight	No B/L
Mass	513±51g
Used for	Desktop Monitor /Gaming
Refresh Rate	100Hz
Touchscreen	Without
Driver IC list	COG Built-in 6 source chips
Signal Type	LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply	10.0V (Typ.)
Max. Ratings	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

23.8 Inch LCD DISPLAY PANEL MF238FHB-N50 tft LCD Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional

Q: How to order Display LCD MF238FHB-N50 ?

A: We accept T/T , Paypal , western union .

Q: Can you tested the MF238FHB-N50 before shipping ?

A: Of course , our lcd panel MF238FHB-N50 was Strictly tested before shipping.

Q: What happen if the lcd pane MF238FHB-N50 received can't work ?

A: MF238FHB-N50 was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
