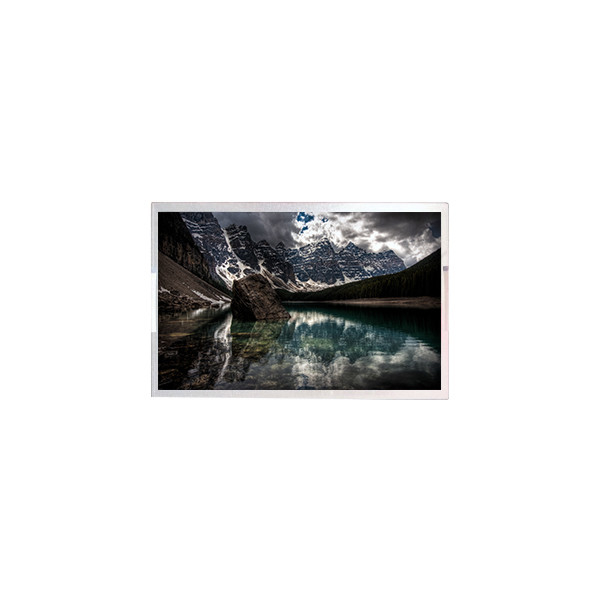

M270DCA-D5B 27.0 Inch LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | M270DCA-D5B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | M270DCA-D5B | Screen Size: | 27.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD 163PPI | Active Area: | 596.736(W)×335.664(H) Mm |
| Outline Size: | 608.54×349.06×1.35 (H×V×D) | Contrast Ratio: | Desktop Monitor |
| Mass: | 14 (Typ.)(G To G) Ms | ||
| Highlight: | 136PPI LCD Screen Panel,AUO A018AN02 V2 LCD Screen |
||
Product Description
M270DCA-D5B 27.0 Inch LCD Screen Display Panel
Product details :
| Brand | Innolux |
| Model P/N | M270DCA-D5B |
| Diagonal Size | 27.0" |
| Panel Type | a-Si TFT-LCD, CELL , FOB |
| Resolution | 3840(RGB)×2160, UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 596.736(W)×335.664(H) mm |
| Bezel Opening | - |
| Outline(mm) | 608.54×349.06×1.35 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | - |
| Color Depth | 1.07B 60% NTSC |
| Backlight | No B/L |
| Outline Shape | 680/710g (Typ./Max.) |
| Use for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , Connector 51 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: If I place order now,when will you ship the goods of M270DCA-D5B ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of M270DCA-D5B ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of M270DCA-D5B ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of M270DCA-D5B ?
A: we will give you tracking number then you can trace your order from website.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
