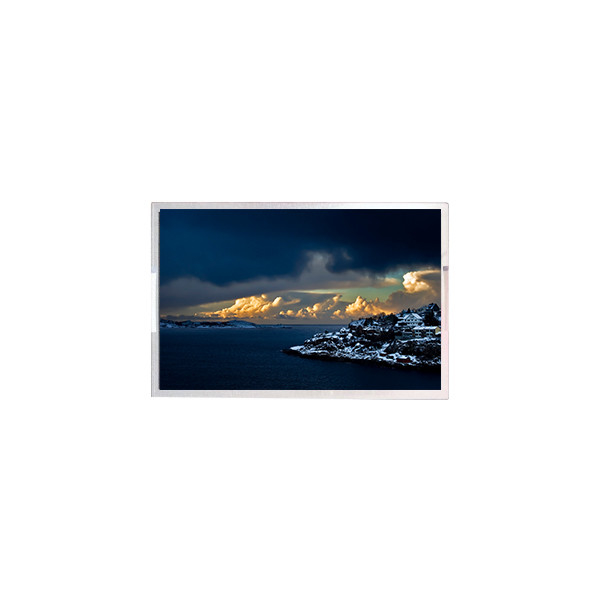

New 6.7 Inch LCD Screen F067A11-6T1 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | F067A11-6T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | F067A11-6T1 | Screen Size: | 6.7" |
|---|---|---|---|
| Pixel Number: | LTPS TFT-LCD, CELL , Q-CUT (Full Cell) | Display Area: | 70.0812(W)×155.736(H) Mm |
| Outline Size: | 71.4812 × 159.436 × 1 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio: | 1400 : 1 (Typ.) (TM) | Response: | 30 (Max.)(Tr+Td) Ms |
| Highlight: | 1.8 Inch LCD Screen Display Panel,A018AN02 V1 LCD Screen 1.8 " |
||
Product Description
New 6.7 Inch LCD Screen F067A11-6T1 LCD Screen Display Panel
Product details :
| Brand | Innolux |
| Model P/N | F067A11-6T1 |
| Diagonal Size | 6.7" |
| Panel Type | LTPS TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 1080(RGB)×2400 391PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 70.0812(W)×155.736(H) mm |
| Bezel Opening | - |
| Outline(mm) | 71.4812 × 159.436 × 1 (H×V×D) |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1400 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | 5.0% (Typ.)(with Polarizer) |
| Color Depth | 16.7M 68% NTSC |
| Backlight | No B/L |
| Mass | TBD |
| Used for | Mobile Phone |
| Refresh Rate | - |
| Touchscreen | In-Cell Touch |
| Driver IC list | Suggest COG IL77600A, ICNL9922CAC, NT36672C |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
