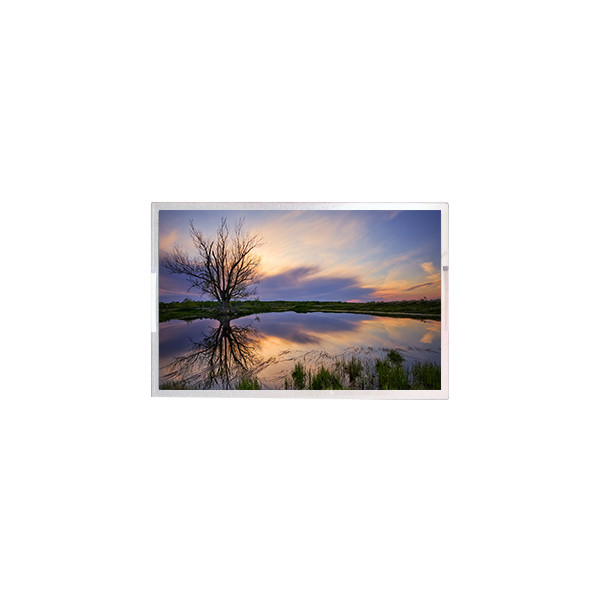

8.0 inch LCD Panel DISPLAY HSD080JHW3-A13 LCD screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD080JHW3-A13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | HSD080JHW3-A13 | Screen Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, Assembly | Resolution: | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.64(W)×99.36(H) Mm |
| Good View At: | Symmetry | Backlight: | 7S3P WLED , 30K Hours , No Driver |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Response: | 20 (Typ.)(Tr+Td) Ms |
| Highlight: | A018AN01 V1 LCD screen,AUO 1.8 inch LCD Panel DISPLAY,Digital Camera LCD Panel DISPLAY |
||
Product Description
8.0 inch LCD Panel DISPLAY HSD080JHW3-A13 LCD screen
Product details :
| Brand | HannStar |
| Model P/N | HSD080JHW3-A13 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, Assembly |
| Resolution | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 179.64(W)×102.36(H) mm |
| Outline(mm) | 192.8(W)×116.9(H)×8.7(D) |
| Treatment | Hard coating (3H) |
| Luminance | 800 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | 262K/16.7M 75% NTSC |
| Backlight | 7S3P WLED , 30K hours , No Driver |
| Mass | 200±20g |
| Used for | Outdoor High Brightness /Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit) + SPI , 30 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: Can I pay my goods HSD080JHW3-A13 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD080JHW3-A13 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for HSD080JHW3-A13 ?
A: Of course!sample order is welcome !
Q: How to make payment for HSD080JHW3-A13 ?
A: We accept T/T , Paypal , western union .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
