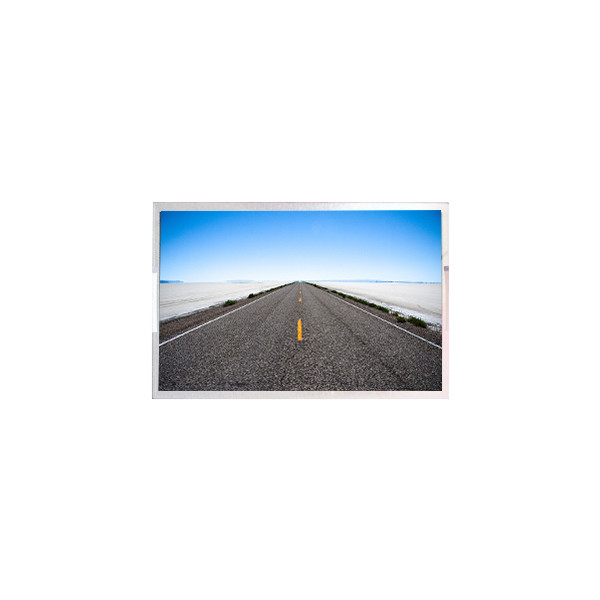

BOE 16.0 inch LCD Monitor Screen NV160WUM-N31 a-Si TFT-LCD LCM
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV160WUM-N31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | NV160WUM-N31 | Screen Size: | 16.0" |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1200, WUXGA 141PPI | Active Area: | 344.68(W)×215.42(H) Mm |
| Outline Size: | 349.68(W)×226.12(H)×5.3(D) | Treatment: | Glare (Haze 0%), Hard Coating (3H) |
| Brightness: | 300 (Typ.)(cd/m²) | Contrast Ratio: | 800 : 1 (Typ.) (TM) |
| Work Mode: | ADS, Normally Black, Transmissive | Used For: | Laptop |
| Highlight: | 1.7inch AUO LCD Monitor Screen,AUO LCD Monitor Screen 1.7inch,A017CN01 V4 LCD Monitor Screen |
||
Product Description
BOE 16.0 inch LCD Monitor Screen NV160WUM-N31 a-Si TFT-LCD LCM
Product details :
| Brand | BOE |
| Model P/N | NV160WUM-N31 |
| Diagonal Size | 16.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, WUXGA 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 344.68(W)×215.42(H) mm |
| Bezel Opening | - |
| Outline(mm) | 349.68(W)×226.12(H)×5.3(D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 300 (Typ.)(cd/m²) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 20 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 45% NTSC |
| Backlight | 10S6P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Voltage Supply | 3.3V (Typ.) |
| Signal Type | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
