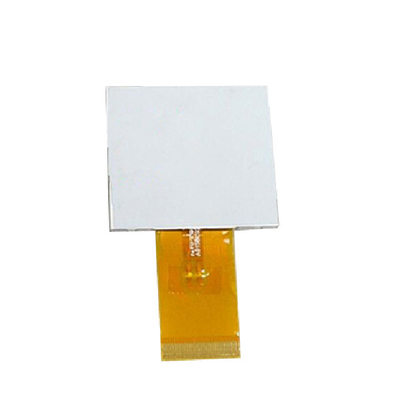

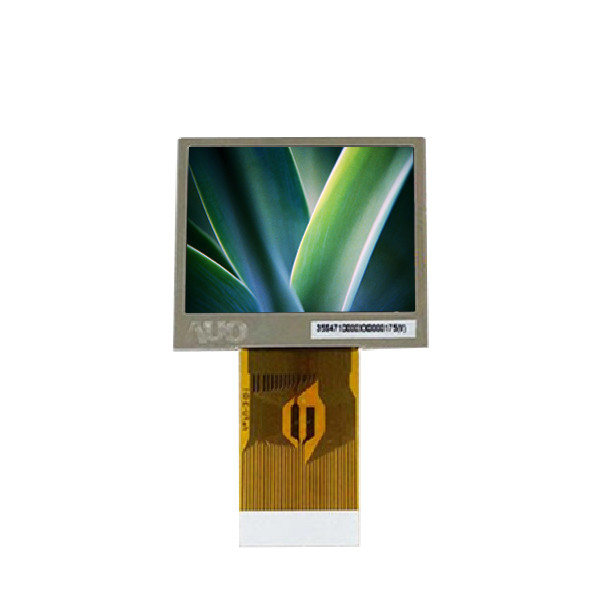

AUO 502×240 A-Si TFT LCD Panel A015BL02 V2 LCD Screen Display Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A015BL02 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A015BL02 V2 | Screen Size: | 1.5 Inch |
|---|---|---|---|
| Pixel Number: | 502×240, 194PPI | Display Area: | 30.622(W)×22.8(H) Mm |
| Outline Size: | 37.7(W)×33.2(H) ×2(D) Mm | Surface: | Hard Coating (3H) |
| Recommended: | 6 O'clock | Contrast Ratio: | 200:1 (Typ.) (TM) |
| High Light: | A015BL02 V2 TFT LCD Panel,502×240 LCD Screen Display Panel,LCD Screen Display Panel 1.5 inch |
||
Product Description
AUO 502×240 a-si TFT LCD panel A015BL02 V2 LCD Screen Display Panel
Product details :
A015BL02 V2 supports display 502×240 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 30.622(W)×22.8(H) mm, outline size of 37.7(W)×33.2(H)×2(D) mm, with surface treament of Hard coating (3H), net weight of 5.00g (Typ.). As a TN, Normally White, Transmissive LCM product, A015BL02 V2 can provides 200:1 transimissive contrast ratio, 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms.. This product have no backlight, external backlight driver is additionally needed. A015BL02 V2 utilizes Serial RGB (8-bit) as it's signal inputting systerm, which connected by 33 pins FPC with power supply voltage of 3.3/9/-6.5V (Typ.)(VCC/VGH/VGL).
| AUO LCD SCREEN A015BL02 V2 | |
| manufacturer | AUO |
| model | A015BL02 V2 |
| Diagonal size | 1.5 inch |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 502×240, 194PPI |
| Pixel | RGB triangle |
| Display area | 30.622(W)×22.8(H) mm |
| physical | 37.7(W)×33.2(H) ×2(D) mm |
| Surface | Hard coating (3H) |
| Contrast | 200:1 (Typ.) (TM) |
| Recommended | 6 o'clock |
| Response time | 15/20 (Typ.)(Tr/Td) ms |
| Viewing angle | 40/40/10/30 (Min.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| type of light | No backlight, no driver |
| weight | 5.00g (Typ.) |
| Application | camera |
| Touch | No touch |
| Interface Typ | Serial RGB (8-bit) , 33 pins , FPC |
| Voltage supply | 3.3/9/-6.5V (Typ.)(VCC/VGH/VGL) |
| Application | Working temperature: 0 ~ 60 °C; Storage temperature: -25 ~ 80 °C |
| AUO 502×240 a-si TFT LCD panel A015BL02 V2 LCD Screen Display Panel | |
