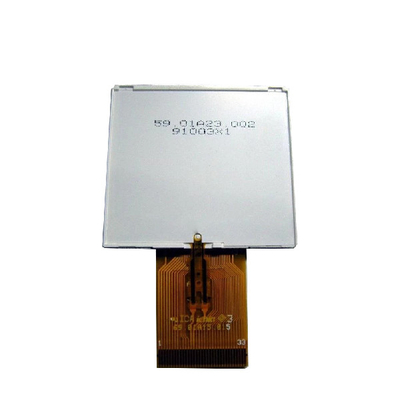

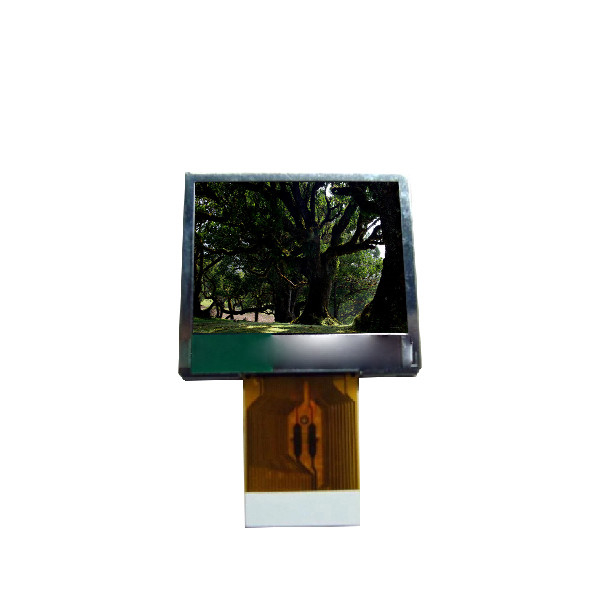

AUO LCD SCREEN A015BL01 LCD Display Panel 1.5 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A015BL01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A015BL01 | Screen Size: | 1.5 Inch |
|---|---|---|---|
| Pixel Number: | 502×240, 194PPI | Display Area: | 30.622(W)×22.8(H) Mm |
| Outline Size: | 37.1(W)×32.8(H) ×3.55(D) Mm | Viewing Angle: | 33.56(W)×25.45(H) Mm |
| Luminance: | 240 Cd/m² (Typ.) | Contrast Ratio: | 200:1 (Typ.) (TM) |
| Highlight: | 1.5 Inch AUO LCD SCREEN,LCD Display Panel A015BL01 |
||
Product Description
AUO LCD SCREEN A015BL01 lcd panel display 1.5 inch
Product details :
| AU Optronics LCD SCREEN A015BL01 | |
| Panel Brand | AU Optronics |
| Panel Model | A015BL01 |
| Panel Size | 1.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 502×240, 194PPI |
| Pixel Format | RGB Delta |
| Display Area | 30.622(W)×22.8(H) mm |
| Bezel Opening | 33.56(W)×25.45(H) mm |
| Outline Size | 37.1(W)×32.8(H) ×3.55(D) mm |
| Surface | Hard coating (3H) |
| Brightness | 240 cd/m² (Typ.) |
| Contrast Ratio | 200:1 (Typ.) (TM) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 2S1P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 8.30g (Typ.) |
| Signal Interface | Serial RGB (8-bit) , 34 pins FPC |
| Input Voltage | 3.3/3.3/5.6/8.0/-6.5V (Typ.)(VCC/AVDD/VDD1/VGH/VGL) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C |
| AUO LCD SCREEN A015BL01 lcd panel display 1.5 inch | |
AU Optronics A015BL01 Lightting Details
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2S1P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 6.6V (Max.) | ||
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty of A015BL01 ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of A015BL01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of A015BL01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods A015BL01 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
