LCD Screen Display Panel

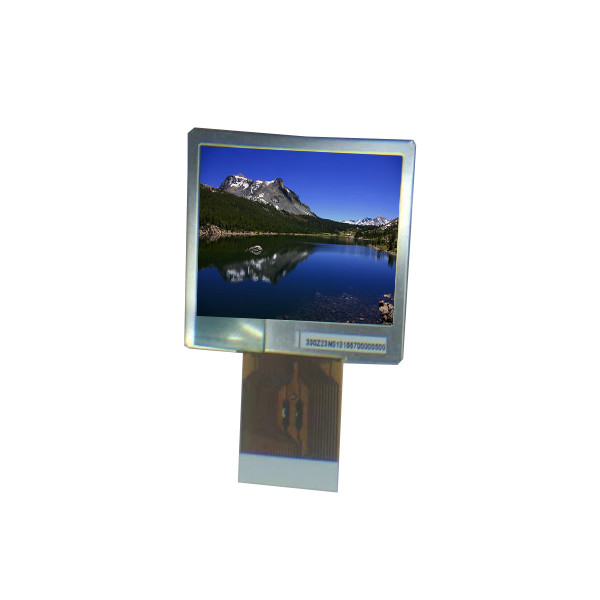

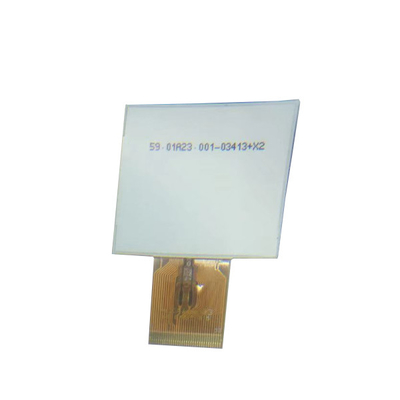

1.5 inches AUO LCD Display A015AN05 V1 280×220 Lcd Panel

All Category

Floor Standing Digital Signage

1.5 inches AUO LCD Display A015AN05 V1 280×220 Lcd Panel

Brand Name:	AUO
Model Number:	A015AN05 V1
MOQ:	2 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

A015AN05 V1

Screen Size:

1.5 Inches

Pixel Number:

280×220, 164PPI

Display Area:

29.96(W)×22.66(H) Mm

Outline Size:

37.1(W)×34(H) Mm

Bezel Opening:

32.86(W)×25.26(H) Mm

Luminance:

170 Cd/m² (Typ.)

Contrast Ratio:

150:1 (Typ.) (transmission)

Supply Ability:

100000 Unit/Units per Month

Highlight:

280×220 AUO LCD Display

1.5 Inches AUO Lcd Panel

A015AN05 V1 Lcd Panel

Product Description

AUO LCD Display A015AN05 V1 280×220 lcd panel display

Product details :

AU Optronics LCD SCREEN A015AN05 V1
Panel Brand	AU Optronics
Panel Model	A015AN05 V1
Panel Size	1.5"
Panel Type	a-Si TFT-LCD , LCM
Resolution	280×220, 164PPI
Pixel Format	RGB Delta
Display Area	29.96(W)×22.66(H) mm
Bezel Opening	32.86(W)×25.26(H) mm
Outline Size	37.1(W)×34(H) mm
Surface	Hard coating (3H)
Brightness	170 cd/m² (Typ.)
Contrast Ratio	150:1 (Typ.) (TM)
Viewing Angle	40/40/10/30 (Min.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	25/30 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	2S1P WLED , 20K hours
Frequency	60Hz
Touch Screen	Without
Panel Weight	6.0g (Typ.)
Signal Interface	Serial RGB (6-bit) + SPI , 33 pins FPC
Input Voltage	3.3/3.3V (Typ.)(VCC/AVDD)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C
AUO LCD Display A015AN05 V1 280×220 lcd panel display

AUO A015AN05 V1 Mechanical Features

Panel Size :	1.5"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	280×220	RGB Delta	- [161PPI]	0.107×0.103
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	29.96(H) × 22.66(V)	32.86(H) × 25.26(V)	37.06(H) × 34(V)	3.04 (Typ.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	6.00g (Typ.)	-	Hard coating (3H)

AUO A015AN05 V1 Optical Details

Basic Information :	Brightness 170 cd/m² (Typ.) Contrast Ratio 150:1 (Typ.) (Transmissive) Viewing Angle 40/40/10/30 (Min.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 25/30 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.310; Wy:0.330 Color Numbers 262K (6-bit) Color Temperature 6638K Uniformity -

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

1.5 inches AUO LCD Display A015AN05 V1 280×220 Lcd Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long will I receive my goods A015AN05 V1 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of A015AN05 V1?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of A015AN05 V1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can I pay my order of A015AN05 V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
