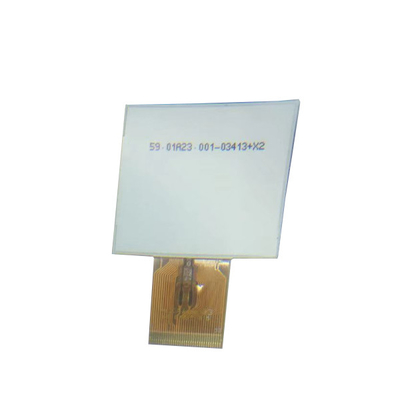

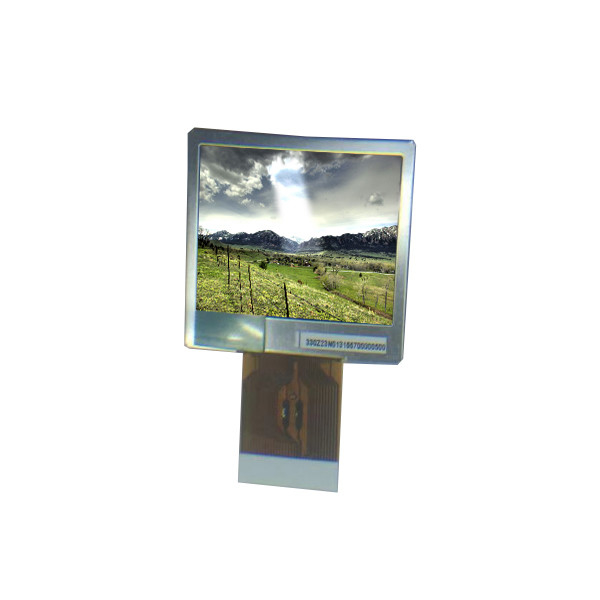

1.5 inches 280×220 Lcd Display A015AN05 V0 LCD Screen LCD MODULES
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A015AN05 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A015AN05 V0 | Screen Size: | 1.5 Inches |
|---|---|---|---|
| Pixel Number: | 280×220 164PPI | Display Area: | 29.96(Horizontal)×22.66(Vertical) Mm |
| Outline Size: | 37.06(Horizontal)×34(Vertical) Mm | Surface: | 32.86(Horizontal)×25.26(Vertical) Mm |
| Luminance: | 170 Cd/m² (Typ.) | Contrast Ratio: | 150:1 (Typ.) (transmission) |
| Highlight: | 1.5 Inches 280×220 Lcd Display,A015AN05 V0 Lcd Display |
||
Product Description
1.5 280×220 lcd display A015AN05 V0 LCD screen LCD MODULES
Product details :
| AUO LCD SCREEN A015AN05 V0 | |
| manufacturer | AUO |
| model | A015AN05 V0 |
| Diagonal size | 1.5 inch |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 280×220 164PPI |
| Pixel | RGB triangle |
| Display area | 29.96(Horizontal)×22.66(Vertical) mm |
| physical | 37.06(Horizontal)×34(Vertical) mm |
| Open area | 32.86(Horizontal)×25.26(Vertical) mm |
| Surface | Hard coating (3H) |
| Display | 170 cd/m² (Typ.) |
| Contrast | 150:1 (Typ.) (transmission) |
| Recommended | 6 o'clock |
| Response time | 25/30 (Typ.)(Tr/Td) ms |
| Viewing angle | 40/40/10/30 (Min.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K |
| type of light | WLED [2S1P], 15K hours |
| weight | 6.00g (Typ.) |
| Application | camera |
| Frame rate | 60Hz |
| Touch | No touch |
| Interface Typ | 33 pins Serial RGB (6-bit) + SPI, FPC |
| Voltage supply | 3.3/3.3V (Typ.)(VCC/AVDD) |
| Application | Working temperature: 0 ~ 60 °C; Storage temperature: -25 ~ 80 °C |
| 1.5 280×220 lcd display A015AN05 V0 LCD screen LCD MODULES | |
AUO A015AN05 V0 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 170 cd/m² (Typ.) | TN, Normally White, Transmissive | 150:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 40/40/10/30 (Min.)(CR≥10) | 25/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of A015AN05 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of A015AN05 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of A015AN05 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of A015AN05 V0 ?
A: Of course!sample order is welcome !
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
