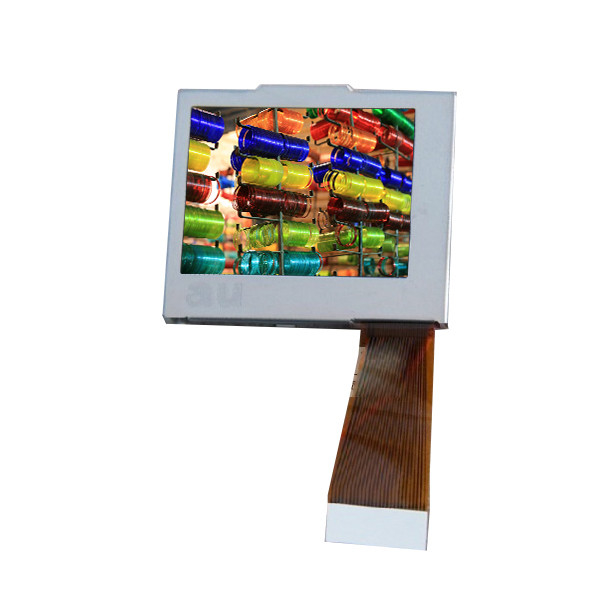

AUO lcd screen display panel A015AN04 V5 1.5 inch 280×220 lcd display
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A015AN04 V5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A015AN04 V5 | Screen Size: | 1.5 Inch |
|---|---|---|---|
| Pixel Number: | 280×220, 164PPI | Display Area: | 29.96(W)×22.66(H) Mm |
| Outline Size: | 37.1(W)×34(H) Mm | Bezel Opening: | 32.86(W)×25.26(H) Mm |
| Luminance: | 170 Cd/m² (Typ.) | Contrast Ratio: | 150:1 (Typ.) (TM) |
Product Description
AUO lcd screen display panel A015AN04 V5 1.5 inch 280×220 lcd display
Product details :
| AU Optronics LCD SCREEN A015AN04 V5 | |
| Panel Brand | AU Optronics |
| Panel Model | A015AN04 V5 |
| Panel Size | 1.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 280×220, 164PPI |
| Pixel Format | RGB Delta |
| Display Area | 29.96(W)×22.66(H) mm |
| Bezel Opening | 32.86(W)×25.26(H) mm |
| Outline Size | 37.1(W)×34(H) mm |
| Surface | Hard coating (3H) |
| Brightness | 170 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 25/30 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 2S1P WLED , 10K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 6.0g (Typ.) |
| Signal Interface | Serial RGB (6-bit) + SPI , 33 pins FPC |
| Input Voltage | 3.3/3.3V (Typ.)(VCC/AVDD) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C |
| AUO lcd screen display panel A015AN04 V5 1.5 inch 280×220 lcd display | |
AUO A015AN04 V5 Mechanical Details
| Pixel Features : | Pixel Format | 280×220 | Dot Pitch | 0.107×0.103 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Delta | Pixel Pitch | - [161PPI] | |
| Mechanical Size : | Display Area | 29.96×22.66 mm (H×V) | Bezel Area | 32.86×25.26 mm (H×V) |
| Outline Dim. | 37.06×34 mm (H×V) | Outline Depth | 3.04 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 6.00g (Typ.) | Surface | Hard coating (3H) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of A015AN04 V5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods A015AN04 V5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of A015AN04 V5 ?
A: The order will be shipped within 2-3 working days after received your payment.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
