Name: AUO lcd panel A015AN04 V4 1.5 inch LCD screen Display panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: A015AN04 V4
Availability: InStock

Brand Name:	AUO
Model Number:	A015AN04 V4
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

A015AN04 V4

Screen Size:

1.5 Inch

Pixel Number:

280×220, 164PPI

Display Area:

29.96(W)×22.66(H) Mm

Outline Size:

37.1(W)×34(H) Mm

Viewing Angle:

40/40/10/30 (Min.)(CR≥10)

Luminance:

180 Cd/m² (Typ.)

Contrast Ratio:

150:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

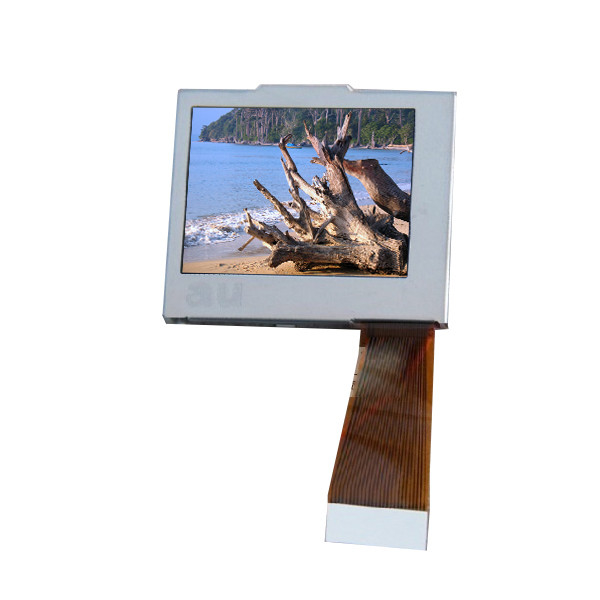

AUO lcd panel A015AN04 V4 1.5 inch LCD screen Display panel

Product details :

AU Optronics LCD SCREEN A015AN04 V4
Panel Brand	AU Optronics
Panel Model	A015AN04 V4
Panel Size	1.5"
Panel Type	a-Si TFT-LCD , LCM
Resolution	280×220, 164PPI
Pixel Format	RGB Delta
Display Area	29.96(W)×22.66(H) mm
Outline Size	37.1(W)×34(H) mm
Surface	Hard coating (3H)
Brightness	180 cd/m² (Typ.)
Contrast Ratio	150:1 (Typ.) (TM)
Viewing Angle	40/40/10/30 (Min.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	25/30 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	2S1P WLED , 10K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	6.0g (Typ.)
Signal Interface	Serial RGB (6-bit) + SPI , 33 pins FPC
Input Voltage	3.3/3.3V (Typ.)(VCC/AVDD)
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C
AUO lcd panel A015AN04 V4 1.5 inch LCD screen Display panel

AUO A015AN04 V4 Optical Details

Basic Information :	Brightness	180 cd/m² (Typ.)	Contrast Ratio	150:1 (Typ.) (Transmissive)
	Viewing Angle	40/40/10/30 (Min.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	6 o'clock	Response Time	25/30 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.310; Wy:0.350	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	6476K	White Uniformity	-

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO lcd panel A015AN04 V4 1.5 inch LCD screen Display panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How can I trace my order of A015AN04 V4 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of A015AN04 V4 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Do you accept sample orders of A015AN04 V4 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of AAA?

A: Of course!If you make a large order, we will give you a discount.

Q: How long is the warranty ?

A: We offer 90 days warranty .

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
