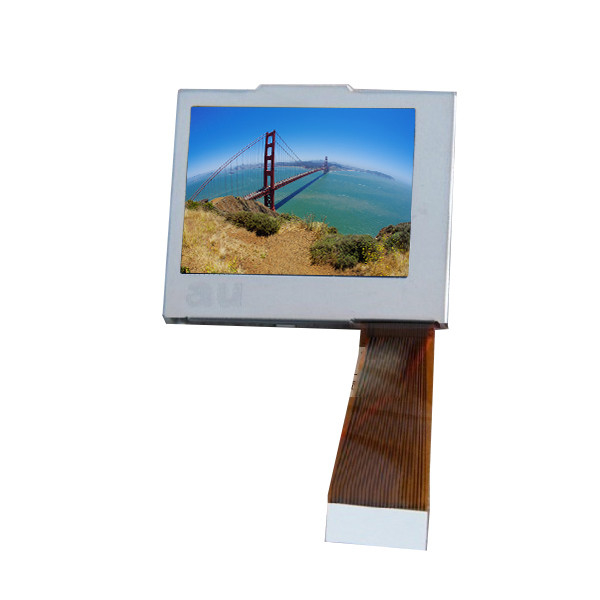

1.5 inch 280×220 TFT-LCD Panel A015AN04 V1 TFT-LCD Module screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | A015AN04 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A015AN04 V1 | Screen Size: | 1.5 " |
|---|---|---|---|
| Pixel Number: | 280×220, 164PPI | Display Area: | 29.96(W)×22.66(H) Mm |
| Outline Size: | 37.1(W)×34(H) Mm | Surface: | Hard Coating (3H) |
| Luminance: | 230 Cd/m² (Typ.) | Contrast Ratio: | 150:1 (Typ.) (TM) |
Product Description
1.5 inch 280×220 TFT-LCD Panel A015AN04 V1 TFT-LCD Module screen
Product details :
A015AN04 V1 supports display 280×220 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 29.96(W)×22.66(H) mm, outline size of 37.1(W)×34(H) mm, with surface treament of Hard coating (3H), net weight of 6.00g (Typ.). As a TN, Normally White, Transmissive LCM product, A015AN04 V1 can provides 230 cd/m² display brightness 150:1 transimissive contrast ratio, 60/60/55/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. A015AN04 V1 utilizes Serial RGB (6-bit) + SPI as it's signal inputting systerm, which connected by 33 pins FPC with power supply voltage of 3.3/3.3V (Typ.)(VCC/AVDD). It's typical vertical frame rate (Fv) is 60Hz.
| AU Optronics LCD SCREEN A015AN04 V1 | |
| Panel Brand | AU Optronics |
| Panel Model | A015AN04 V1 |
| Panel Size | 1.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 280×220, 164PPI |
| Pixel Format | RGB Delta |
| Display Area | 29.96(W)×22.66(H) mm |
| Outline Size | 37.1(W)×34(H) mm |
| Surface | Hard coating (3H) |
| Brightness | 230 cd/m² (Typ.) |
| Contrast Ratio | 150:1 (Typ.) (TM) |
| Viewing Angle | 60/60/55/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 25/30 (Typ.)(Tr/Td) |
| Display Colors | 262K |
| Lamp Type | 2S1P WLED , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 6.0g (Typ.) |
| Signal Interface | Serial RGB (6-bit) + SPI , 33 pins FPC |
| Input Voltage | 3.3/3.3V (Typ.)(VCC/AVDD) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C |
| 1.5 inch 280×220 TFT-LCD Panel A015AN04 V1 TFT-LCD Module screen | |
AU Optronics A015AN04 V1 Mechanical Details
| Pixel Features : | Pixel Format | 280×220 | Dot Pitch | 0.107×0.103 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Delta | Pixel Pitch | - [161PPI] | |
| Mechanical Size : | Display Area | 29.96×22.66 mm (H×V) | Bezel Area | - |
| Outline Dim. | 37.1×34 mm (H×V) | Outline Depth | 3.1 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 6.00g (Typ.) | Surface | Hard coating (3H) |
