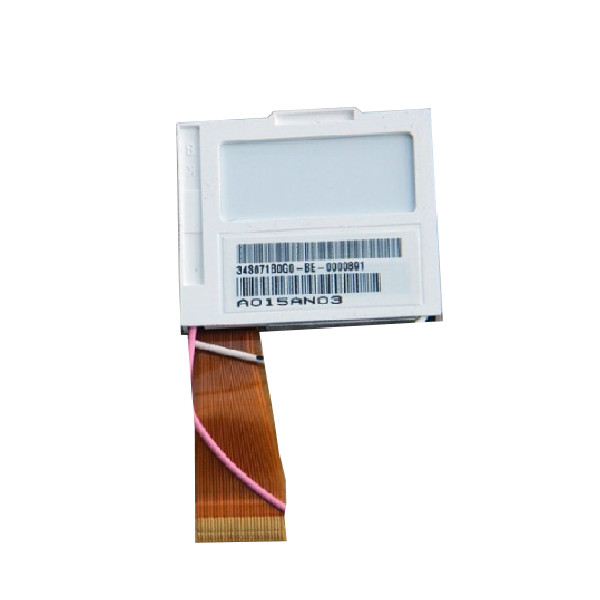

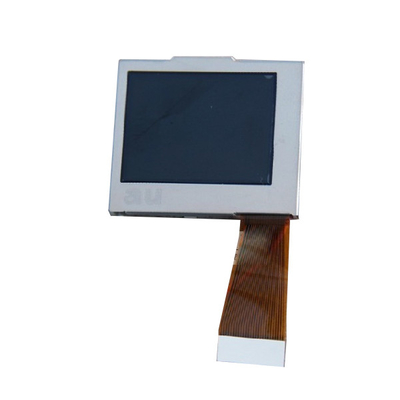

A015AN03 LCD screen LCD MODULES

A015AN03 LCD screen LCD MODULES

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: A015AN03

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: A015AN03 Screen Size: 1.46 "
Pixel Number: 280×220, 164PPI Display Area: 29.54(W)×22.22(H) Mm
Outline Size: 40.1(W)×34.6(H) ×4.2(D) Mm Panel Weight: 10.0g (Typ.)
Luminance: 200 Cd/m² (Typ.) Contrast Ratio: 150:1 (Typ.) (TM)

Product Description

A015AN03 LCD screen LCD MODULES





Product details :

AU Optronics LCD SCREEN A015AN03
Panel Brand AU Optronics
Panel Model A015AN03
Panel Size 1.46"
Panel Type a-Si TFT-LCD , LCM
Resolution 280×220, 164PPI
Pixel Format RGB Delta
Display Area 29.54(W)×22.22(H) mm
Outline Size 40.1(W)×34.6(H) ×4.2(D) mm
Surface Hard coating (3H)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 150:1 (Typ.) (TM)
Viewing Angle 45/45/10/30 (Min.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Response Time 25/30 (Typ.)(Tr/Td)
Lamp Type 2S1P WLED , 10K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 10.0g (Typ.)
Signal Interface TFT Specific Analog RGB , 26 pins FPC
Input Voltage 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C
A015AN03 LCD screen LCD MODULES

AU Optronics A015AN03 Mechanical Details

Pixel Features : Number of Pixel 280×220 Arrangement RGB Delta
Dot Pitch(W×H) 0.1055×0.101 mm Pixel Pitch(W×H) - [164PPI]
Physical Size : Active Viewing 29.54(W)×22.22(H) mm Overall Dim. 40.1(W)×34.6(H) mm
Bezel Opening - Overall Depth 3.9±0.2 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style
Other Detail : Mass 10.0g (Typ.) Surface Hard coating (3H)

Why Choose Us :



According to customers' various requests,


we can match all accessories which inclusive of driver board,


touch-screen, LED backlight & LVDS cables. TFT LCD,


LCD panel, LCD display,LCD screen, LCD monitor,


LCD module from 2.2 inch to 88 inch.


Quality promised, 100% original,fast delivery,


also enjoy one year guarantee !



Shipping and Package :



A015AN03 LCD screen LCD MODULES 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products



2) All Panels are packed with new and firm carton, capable of long distance transportation.



3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT



4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .



Q: Can you give me a discount if I need a large quantity of A015AN03 ?

A: Of course!If you make a large order, we will give you a discount.



Q: If I place order now,when will you ship the goods of A015AN03?

A: The order will be shipped within 2-3 working days after received your payment.



Q: How to make payment of A015AN03 ?

A: We accept T/T , Paypal , western union .





*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
