• A015AN02 V1 280×220 lcd panel display

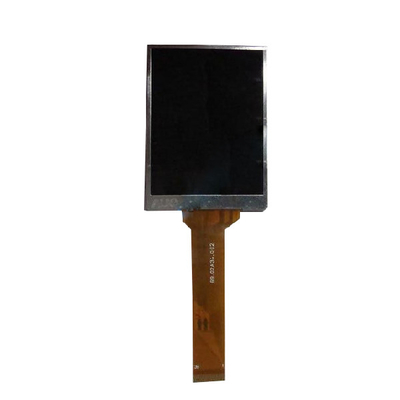

A015AN02 V1 280×220 lcd panel display

A015AN02 V1 280×220 lcd panel display

Product Details:

Place of Origin: China
Brand Name: AUO
Model Number: A015AN02 V1

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model Name: A015AN02 V1 Screen Size: 1.46 "
Pixel Number: 280×220, 164PPI Display Area: 29.54(W)×22.22(H) Mm
Outline Size: 40.5(W)×34.65(H) Mm Lamp Type: 2S1P WLED , 10K Hours , Without Driver
Luminance: 200 Cd/m² (Typ.) Contrast Ratio: 150:1 (Typ.) (TM)

Product Description

A015AN02 V1 280×220 lcd panel display



Product details :

AU Optronics LCD SCREEN A015AN02 V1
Panel Brand AU Optronics
Panel Model A015AN02 V1
Panel Size 1.46"
Panel Type a-Si TFT-LCD , LCM
Resolution 280×220, 164PPI
Pixel Format RGB Delta
Display Area 29.54(W)×22.22(H) mm
Outline Size 40.5(W)×34.65(H) mm
Brightness 200 cd/m² (Typ.)
Contrast Ratio 150:1 (Typ.) (TM)
Viewing Angle 45/45/10/30 (Min.)(CR≥10)
Display Mode TN, Normally White, Transmissive
Response Time 25/30 (Typ.)(Tr/Td)
Lamp Type 2S1P WLED , 10K hours , Without Driver
Frequency 60Hz
Touch Screen Without
Panel Weight 10.0/12.0g (Typ./Max.)
Signal Interface Serial RGB (6-bit) , 32 pins FPC
Input Voltage 3.3/3.3/17.8V (Typ.)(VCC/AVDD/VGH)
Environment Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C
A015AN02 V1 280×220 lcd panel display


Why Choose Us :


According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !


Shipping and Package :


A015AN02 V1 280×220 lcd panel display 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products


2) All Panels are packed with new and firm carton, capable of long distance transportation.




4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.



Q: How to make payment of A015AN02 V1 ?

A: We accept T/T , Paypal , western union .


Q: Do you accept sample orders of A015AN02 V1 ?

A: Of course!sample order is welcome !


Q: Can I pay my order of A015AN02 V1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.


Q: Can You declare my order of A015AN02 V1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
