LCD Screen Display Panel

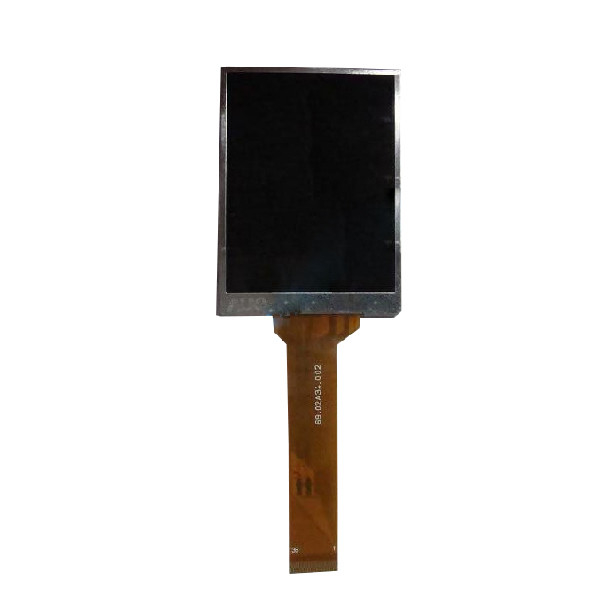

AUO 1.46 inch TFT-LCD Module screen A015AN02 LCD Screen Display Panel

All Category

Floor Standing Digital Signage

AUO 1.46 inch TFT-LCD Module screen A015AN02 LCD Screen Display Panel

Brand Name:	AUO
Model Number:	A015AN02
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model Name:

A015AN02

Screen Size:

1.46 Inch

Pixel Number:

280×220, 164PPI

Display Area:

29.54(W)×22.22(H) Mm

Outline Size:

40.5(W)×34.65(H) Mm

Viewing Angle:

45/45/10/30 (Min.)(CR≥10)

Luminance:

200 Cd/m² (Typ.)

Contrast Ratio:

150:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

AUO 1.46 inch TFT-LCD Module screen A015AN02 LCD Screen Display Panel

Product details :

A015AN02 supports display 280×220 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta. As for mechanical detail, it features active area of 29.54(W)×22.22(H) mm, outline size of 40.5(W)×34.65(H) mm, with surface treament of Hard coating (3H), net weight of 10.0g (Typ.). As a TN, Normally White, Transmissive LCM product, A015AN02 can provides 200 cd/m² display brightness 150:1 transimissive contrast ratio, 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25/30 (Typ.)(Tr/Td) ms.. This product adopted 2S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A015AN02 utilizes Serial RGB (6-bit) as it's signal inputting systerm, which connected by 30 pins FPC.

AU Optronics LCD SCREEN A015AN02
Panel Brand	AU Optronics
Panel Model	A015AN02
Panel Size	1.46"
Panel Type	a-Si TFT-LCD , LCM
Resolution	280×220, 164PPI
Pixel Format	RGB Delta
Display Area	29.54(W)×22.22(H) mm
Outline Size	40.5(W)×34.65(H) mm
Brightness	200 cd/m² (Typ.)
Contrast Ratio	150:1 (Typ.) (TM)
Viewing Angle	45/45/10/30 (Min.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	25/30 (Typ.)(Tr/Td)
Lamp Type	2S1P WLED , 10K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	10.0g (Typ.)
Signal Interface	Serial RGB (6-bit) , 30 pins FPC
Environment	Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 80 °C
AUO 1.46 inch TFT-LCD Module screen A015AN02 LCD Screen Display Panel

AU Optronics A015AN02 Mechanical Details

Pixel Features :	Number of Pixel	280×220	Arrangement	RGB Delta
Pixel Features :	Dot Pitch(W×H)	0.1055×0.101 mm	Pixel Pitch(W×H)	- [164PPI]
Physical Size :	Active Viewing	29.54(W)×22.22(H) mm	Overall Dim.	40.5(W)×34.65(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	3.9 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Other Detail :	Mass	10.0g (Typ.)	Surface	Hard coating (3H)

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

AUO 1.46 inch TFT-LCD Module screen A015AN02 LCD Screen Display Panel 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long is the warranty of A015AN02 ?

A: 90days warranty .

Q: Can I pay my goods A015AN02 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How do you ship my goods A015AN02 ?

A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
