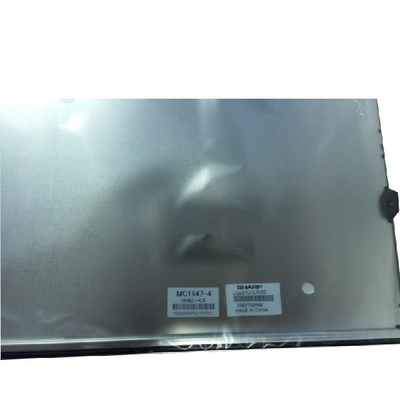

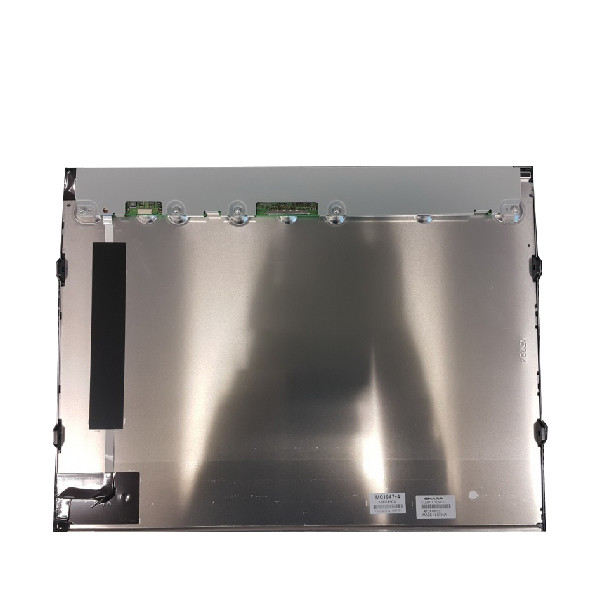

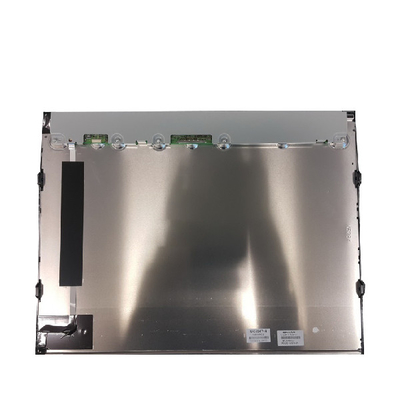

Name: LQ201U1LW32 Original 20.1 Inch LCD Display For Military Application
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ201U1LW32
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ201U1LW32
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ201U1LW32

Screen Size:

20.1 Inch

Pixel Number:

1600(RGB)×1200 (UXGA) 99PPI

Display Area:

408(W)×306(H) Mm

Outline Size:

436(W)×335(H) ×20.4(D) Mm

Bezel Opening:

413.2(W)×311.2(H) Mm

Luminance:

260 Cd/m² (Typ.)

Contrast Ratio:

1400:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Highlight:

Military 20.1 Inch LCD Display

60Hz lcd display screen panel

Antiglare 20.1 Inch LCD Display

Product Description

LQ201U1LW32 Original 20.1 inch LCD Display for military Application

Product details :

Sharp LCD SCREEN LQ201U1LW32
Panel Brand	Sharp
Panel Model	LQ201U1LW32
Panel Size	20.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1600(RGB)×1200 (UXGA) 99PPI
Pixel Format	RGB Vertical Stripe
Display Area	408(W)×306(H) mm
Bezel Opening	413.2(W)×311.2(H) mm
Outline Size	436(W)×335(H) ×20.4(D) mm
Surface	Antiglare, Hard coating (2H)
Brightness	260 cd/m² (Typ.)
Contrast Ratio	1400:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	VA, Normally Black, Transmissive
Best View on	6 o'clock
Response Time	30 (Typ.)(Tr+Td)
Display Colors	16.7M 76% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	2.40Kgs (Max.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	12.0V (Typ.)
Environment	Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C
LQ201U1LW32 Original 20.1 inch LCD Display for military Application

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

LQ201U1LW32 Original 20.1 Inch LCD Display For Military Application 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How can I trace my order of LQ201U1LW32 ?

A: we will give you tracking number then you can trace your order from website.

Q: If I place order now,when will you ship the goods of LQ201U1LW32?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90 days warranty .

Q: Can I pay my order of LQ201U1LW32 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
