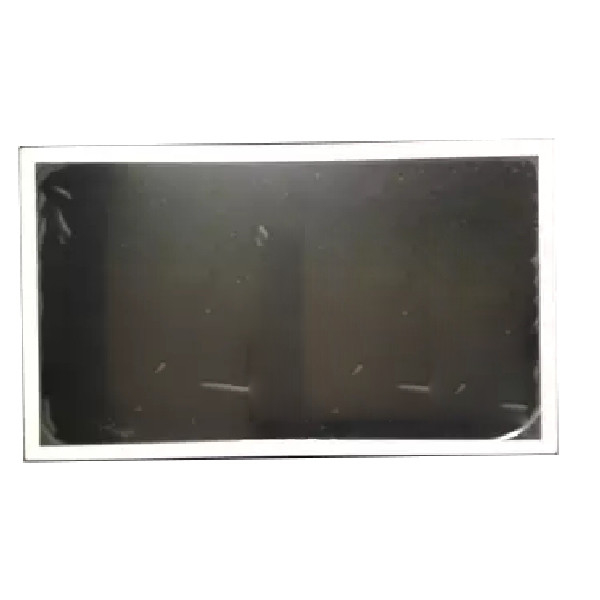

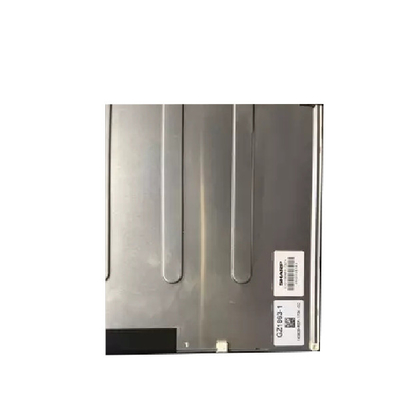

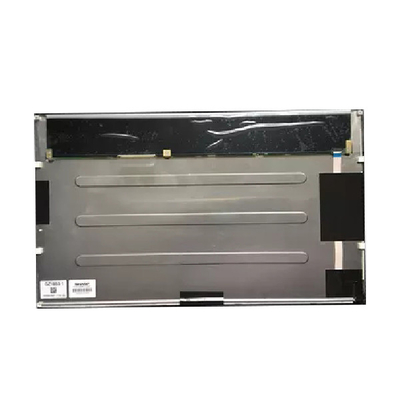

Name: Original 15.6 inch LQ156M1LG21 LCD Display Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: LQ156M1LG21
Availability: InStock

Brand Name:	Sharp
Model Number:	LQ156M1LG21
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

LQ156M1LG21

Screen Size:

15.6 Inch

Pixel Number:

1920(RGB)×1080, FHD, 141PPI

Display Area:

344.16(W)×193.59(H) Mm

Outline Size:

370(W)×217(H) ×9.8(D) Mm

Bezel Opening:

349.0(W)×198.4(H) Mm

Luminance:

600 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 15.6 inch LQ156M1LG21 LCD Display Screen

Product details :

Sharp LCD SCREEN LQ156M1LG21
Panel Brand	Sharp
Panel Model	LQ156M1LG21
Panel Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD, 141PPI
Pixel Format	RGB Vertical Stripe
Display Area	344.16(W)×193.59(H) mm
Bezel Opening	349.0(W)×198.4(H) mm
Outline Size	370(W)×217(H) ×9.8(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	600 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/80/65 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	30 (Typ.)(Tr+Td)
Display Colors	16.7M 76% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	950g (Max.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C
Original 15.6 inch LQ156M1LG21 LCD Display Screen

Sharp LQ156M1LG21 Mechanical Details

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.05975×0.17925 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :	Active Area(mm) 344.16(H) × 193.59(V) Bezel Area(mm) 349.0(H) × 198.4(V) Outline Dim.(mm) 370(H) × 217(V) Depth(mm) 5.5/9.8 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight 950g (Max.) Treatment Antiglare, Hard coating (3H)

Why Choose Us :

According to customers' various requests,

we can match all accessories which inclusive of driver board,

touch-screen, LED backlight & LVDS cables. TFT LCD,

LCD panel, LCD display,LCD screen, LCD monitor,

LCD module from 2.2 inch to 88 inch.

Quality promised, 100% original,fast delivery,

also enjoy one year guarantee !

Shipping and Package :

Original 15.6 inch LQ156M1LG21 LCD Display Screen 0

1)All of our product will be testing before shipping . So you can be assured the quality of our products

2) All Panels are packed with new and firm carton, capable of long distance transportation.

3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT

4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.

FAQ:

Q: How long will I receive my goods LQ156M1LG21 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: If I place order now,when will you ship the goods of LQ156M1LG21 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long is the warranty ?

A: We offer 90 days warranty .

Q: How to make payment of LQ156M1LG21 ?

A: We accept T/T , Paypal , western union .

*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
