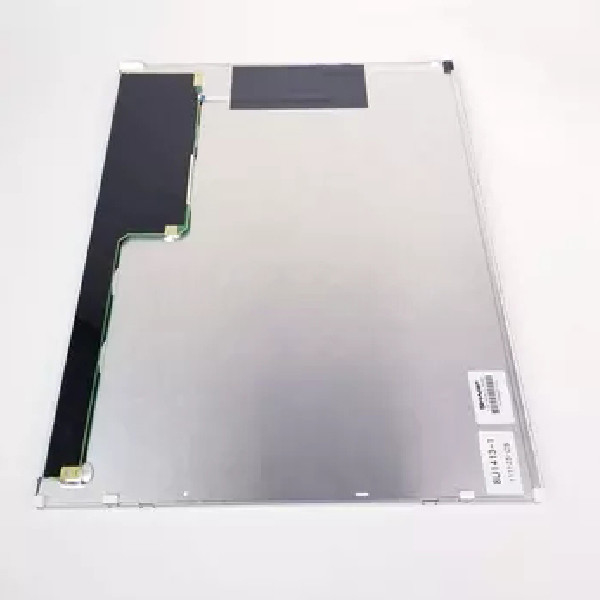

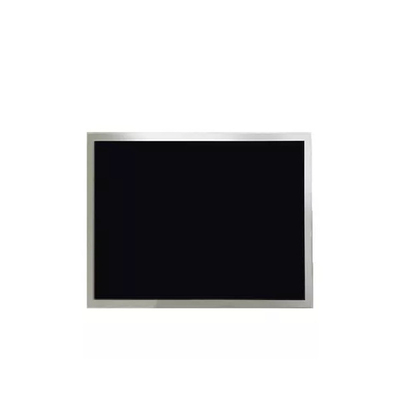

15 Inch Industrial LCD Panel Display LQ150X1LW94 For Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ150X1LW94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ150X1LW94 | Screen Size: | 15.0 Inch |
|---|---|---|---|
| Pixel Number: | 1024(RGB)×768, XGA, 85PPI | Display Area: | 304.128(W)×228.096(H) Mm |
| Outline Size: | 326.5(W)×253.5(H) ×10.1(D) Mm | Bezel Opening: | 307.4(W)×231.1(H) Mm |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1500:1 (Typ.) (TM) |
| High Light: | LQ150X1LW94 High Resolution Lcd Display,300 cd/m2 Industrial LCD Panel,85PPI Industrial LCD Panel Display |
||
Product Description
15 inch Industrial LCD Panel Display LQ150X1LW94 for machine
Product details :
LQ156M1LG21 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 370(W)×217(H)×9.8(D) mm, viewing area size of 349.0(W)×198.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 950g (Max.). As a TN, Normally White, Transmissive LCM product, LQ156M1LG21 can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 76% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LQ156M1LG21 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

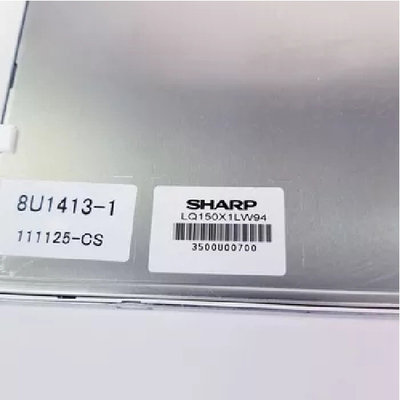

| Sharp LCD SCREEN LQ150X1LW94 | |
| Panel Brand | Sharp |
| Panel Model | LQ150X1LW94 |
| Panel Size | 15.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 85PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm |
| Bezel Opening | 307.4(W)×231.1(H) mm |
| Outline Size | 326.5(W)×253.5(H) ×10.1(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 35 (Typ.)(Tr+Td) |
| Display Colors | 16.2M 70% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 950g (Max.) |

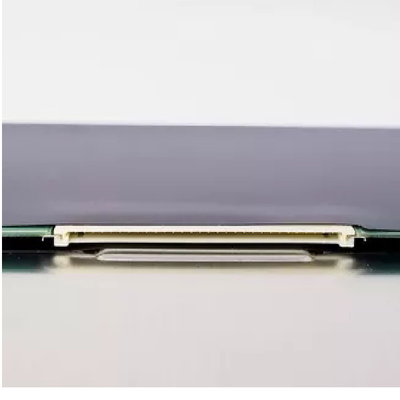

| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 65 °C |
| 15 inch Industrial LCD Panel Display LQ150X1LW94 for machine | |
Sharp LQ150X1LW94 Backlight Details
| Back-light Features : | |
|---|---|
| Interface Features : | |
| Driver Electrical : |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How to make payment of LQ150X1LW94 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LQ150X1LW94 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LQ150X1LW94 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LQ150X1LW94 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
