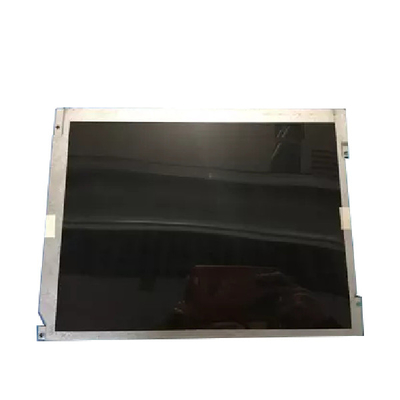

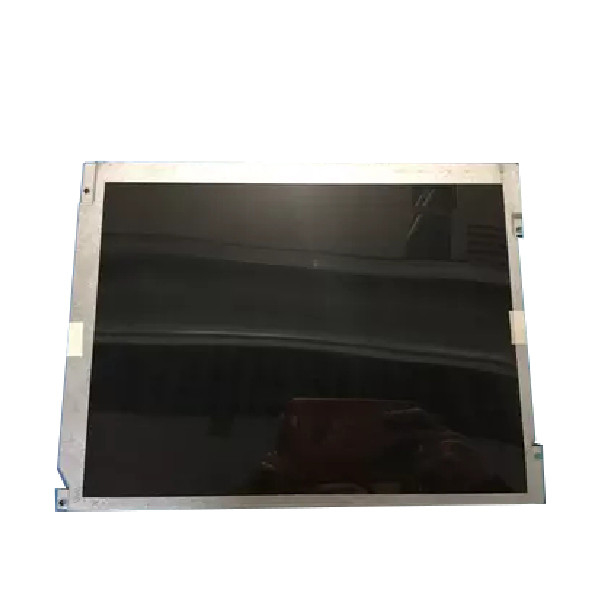

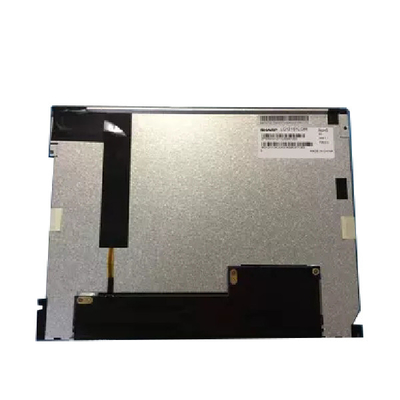

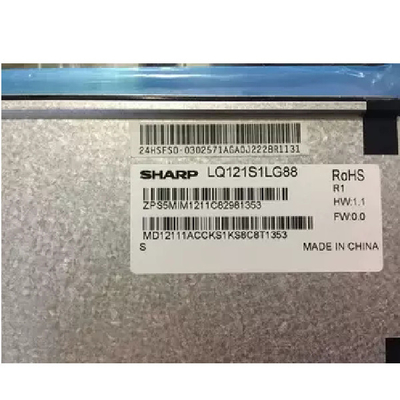

Original For Sharp LCD Screen 12.1 inch LQ121S1LG88
Product Details:
| Place of Origin: | China |
| Brand Name: | Sharp |
| Model Number: | LQ121S1LG88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LQ121S1LG88 | Screen Size: | 12.1 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×600, SVGA, 82PPI | Display Area: | 246(W)×184.5(H) Mm |
| Outline Size: | 276(W)×209(H) ×9.6(D) Mm | Bezel Opening: | 249.0(W)×187.5(H) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Highlight: | 12.1 inch 82PPI LCD Screen,LQ121S1LG88 Industrial LCD Panel |
||
Product Description
Original For Sharp LCD Screen 12.1 inch LQ121S1LG88
Product details :
| Sharp LCD SCREEN LQ121S1LG88 | |
| Panel Brand | Sharp |
| Panel Model | LQ121S1LG88 |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA, 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 276(W)×209(H) ×9.6(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 262K 53% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 750g (Max.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -15 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Original For Sharp LCD Screen 12.1 inch LQ121S1LG88 | |
Sharp LQ121S1LG88 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dim. | 276×209 mm (H×V) | Outline Depth | 9.6 (Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |||
| Other Features : | Weight | 750g (Max.) | Surface | Antiglare, Hard coating (3H) |
Why Choose Us :
According to customers' various requests,
we can match all accessories which inclusive of driver board,
touch-screen, LED backlight & LVDS cables. TFT LCD,
LCD panel, LCD display,LCD screen, LCD monitor,
LCD module from 2.2 inch to 88 inch.
Quality promised, 100% original,fast delivery,
also enjoy one year guarantee !
Shipping and Package :
1)All of our product will be testing before shipping . So you can be assured the quality of our products
2) All Panels are packed with new and firm carton, capable of long distance transportation.
3) Shipping accepted: FEDEX, DHL, UPS, TNT, EMS, AIR FREIGHT, SEA FREIGHT
4) Delivery time: as we have huge stock, orders only takes 1-3 working days after reveived the payment, and will use third parties delivery services or delivered as clients request.
FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of LQ121S1LG88 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LQ121S1LG88 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of LQ121S1LG88 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
